4BT3.9-C105

Cummins 4BT3.9-C105 Engine Model from Dongfeng Cummins Engine Plant (DCEC Cummins). 4BT3.9-C105 used for mining, construction and industrial efficient and economical engineering machinery engine,Cummins 4BT3.9-C105 original/genuine engine spare parts catalog and manual.
Enquiry

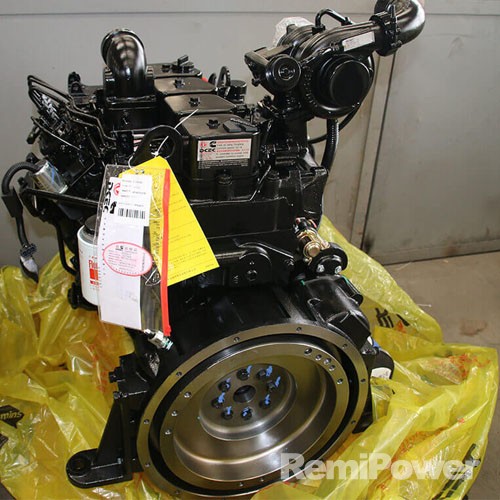

Cummins 4BT3.9-C105 Engineering Diesel Engine

Cummins 4BT3.9-C105 Construction Engine Specifications
Engine Model 4BT3.9-C105
Rated Power 75 kW/100HP
Rated Speed 2800 rpm
Engine Type 4 Cylinders, in Line
Bore*Stroke(mm) 102 mm * 120 mm
Displacement 3.9 L
Compression Ratio 18:01
Peak Torque 330 N.m @ 1500 rpm
Fuel Consumption 270g/Kw.h
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Wuxi Weifu A Pump/ RSV Govenor
Packing Weight 338 Kg
Dimension 867mm*544mm*988mm
Cummins diesel engine 4BT3.9-C105 trade information
Warranty Time 1 year or 1000 hours, which one comes first
Delivery Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF
Payement termes  T/T, L/C



Remarks:
(1) Cummins 4BT3.9-C105 engine power pack with Radiator, Air Filter, Muffler, Engine Monitor, Engine Chassis avaialble
(2) We can provide the 4BT3.9-C105 complete engine,also Cummins  4BT3.9-C105 genuine engine spare parts Cataloge.
