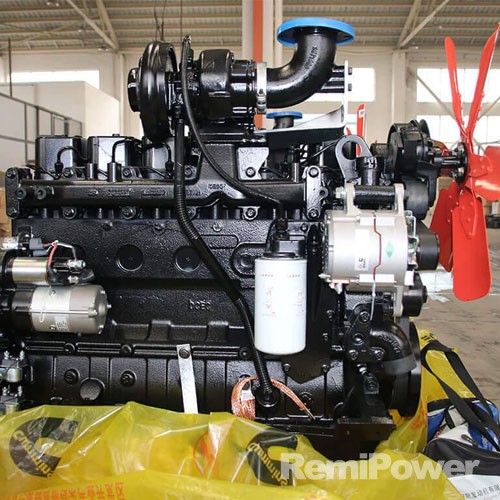

6BTA5.9-C

Cummins 6BTA5.9-C Engineering diesel engine,Original from Dongfeng Cummins Engine Plant (DCEC). DCEC Cummins 6BTA5.9-C130,6BTA5.9-C150,6BTA5.9-C155,6BTA5.9-C170,6BTA5.9-C175,6BTA5.9-C180,6BTAA5.9-C190,6BTAA5.9-C195,6BTAA5.9-C205 widely use on Heavy truck, Excavator, Road roller, Bulldozer, Crane, water pump Available for Cummins 6BTA5.9-C genuine engine spare parts.
Enquiry

Cummins 6BTA5.9-C130

Cummins  6BTA5.9-C130 Construction Engine Specifications
Engine Model 6BTA5.9-C130
Rated Power  97kW/130HP
Rated Speed 2200RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque  560N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Weifu A Pump/RSV Governor
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm
Cummins diesel engine  6BTA5.9-C130 trade information
Warranty Time 1 year or 1000 hours, which one comes first
Delivery Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF
Payement termes  T/T, L/C



Cummins 6BTA5.9-C150

Cummins  6BTA5.9-C150 Construction Engine Specifications
Engine Model 6BTA5.9-C150
Rated Power  112kW/150HP
Rated Speed 1800RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque  630N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Weifu A Pump/RSV Governor
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm



Cummins 6BTA5.9-C155

Cummins  6BTA5.9-C155 Construction Engine Specifications
Engine Model 6BTA5.9-C155
Rated Power  114kW/155HP
Rated Speed 2200RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque  625N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Weifu A Pump/RSV Governor
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm





Cummins 6BTA5.9-C170

Cummins  6BTA5.9-C170 Construction Engine Specifications
Engine Model 6BTA5.9-C170
Rated Power  125kW/170HP
Rated Speed 2300RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque  630N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Weifu A Pump/RSV Governor
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm



Cummins 6BTA5.9-C175

Cummins  6BTA5.9-C175 Construction Engine Specifications
Engine Model 6BTA5.9-C175
Rated Power  128kW/175HP
Rated Speed 2100RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque  680N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Wuxi Weifu PW Pump/RSV
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm



Cummins 6BTA5.9-C180

Cummins  6BTA5.9-C180 Construction Engine Specifications
Engine Model 6BTA5.9-C180
Rated Power  132kW/155HP
Rated Speed 2200RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque 750N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Wuxi Weifu AD Pump/RSV
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm



Cummins 6BTAA5.9-C190

Cummins  6BTAA5.9-C190 Construction Engine Specifications
Engine Model 6BTAA5.9-C190
Rated Power  142kW/190HP
Rated Speed 2200RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque  800N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System  Beiyou P7100 Pump/RSV
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm





Cummins 6BTAA5.9-C195

Cummins  6BTAA5.9-C195 Construction Engine Specifications
Engine Model 6BTAA5.9-C195
Rated Power  146kW/195HP
Rated Speed 1950RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque  960N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System  Beiyou P7100 Pump/RSV
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm



Cummins 6BTAA5.9-C205



Cummins  6BTAA5.9-C205 Construction Engine Specifications
Engine Model 6BTAA5.9-C205
Rated Power  151kW/205HP
Rated Speed 2000RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 102 mm* 120mm
Displacement 5.9L
Compression Ratio  17.3: 1
Peak Torque  870N.m @1500r/min
Fuel Consumption 28.5 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System  Beiyou P7100 Pump/RSV
Packing Weight  443 KG
Dimension 1250mm*870mm*1350mm
