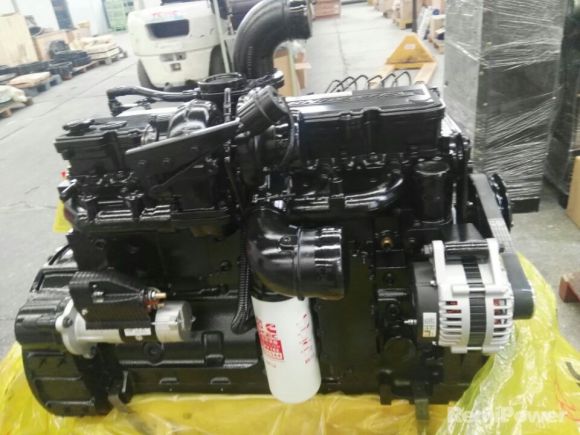

Cummins Diesel Engine QSZ13-C for Engineering

‹ ›

QSZ13-C

Cummins QSZ13-C Engineering diesel engine,Cummins QSZ13-C450 ,QSZ13-C475, QSZ13-C500,QSZ13-C525,QSZ13-C550,QSZ13-C575 widely use on Heavy truck, Excavator, Road roller, Bulldozer, Crane, water pump Available for Cummins QSZ13-C genuine engine spare parts.

Product Model:

Enquiry

Cummins QSZ13-C450

Cummins QSZ13-C450 Construction Engine Specifications
Engine Model	QSZ13-C450
Rated Power	335kW/450HP
Rated Speed	2100RPM
Engine Type	6 Cylinders, Inline
Bore*Stroke(mm)	130 mm* 163mm
Displacement	13L
Compression Ratio	17:1
Peak Torque	2200N.m @1300-1400rpm
Fuel Consumption	64.4 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	HPCR
Packing Weight	1250 Kg
Dimension	1396mm1049mm1232mm
Cummins diesel engine QSZ13-C450 trade information
Warranty Time	1 year or 1000 hours, which one comes first
Delivery Port	Shanghai or any China port
Leading Time	15 working days
Trade Termes	FOB/CIF
Payement termes	T/T, L/C

Cummins QSZ13-C475

Cummins QSZ13-C475 Construction Engine Specifications
Engine Model	QSZ13-C475
Rated Power	354kW/475HP
Rated Speed	1900RPM
Engine Type	6 Cylinders, Inline
Bore*Stroke(mm)	130 mm* 163mm
Displacement	13L
Compression Ratio	17:1
Peak Torque	2200N.m @1300-1400rpm
Fuel Consumption	64.4 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	HPCR
Packing Weight	1250 Kg
Dimension	1396mm1049mm1232mm

Cummins QSZ13-C500

Cummins QSZ13-C500 Construction Engine Specifications
Engine Model	QSZ13-C500
Rated Power	372kW/500HP
Rated Speed	1900RPM
Engine Type	6 Cylinders, Inline
Bore*Stroke(mm)	130 mm* 163mm
Displacement	13L
Compression Ratio	17:1
Peak Torque	2200N.m @1300-1400rpm
Fuel Consumption	64.4 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	HPCR
Packing Weight	1250 Kg
Dimension	1396mm1049mm1232mm

Cummins QSZ13-C525

Cummins QSZ13-C525 Construction Engine Specifications
Engine Model	QSZ13-C525
Rated Power	390kW/525HP
Rated Speed	1900RPM
Engine Type	6 Cylinders, Inline
Bore*Stroke(mm)	130 mm* 163mm
Displacement	13L
Compression Ratio	17:1
Peak Torque	2580N.m @1300-1500rpm
Fuel Consumption	64.4 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	HPCR
Packing Weight	1250 Kg
Dimension	1396mm1049mm1232mm

Cummins QSZ13-C550

Cummins QSZ13-C550 Construction Engine Specifications
Engine Model	QSZ13-C550
Rated Power	410kW/550HP
Rated Speed	1900RPM
Engine Type	6 Cylinders, Inline
Bore*Stroke(mm)	130 mm* 163mm
Displacement	13L
Compression Ratio	17:1
Peak Torque	2650N.m @1300-1500rpm
Fuel Consumption	64.4 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	HPCR
Packing Weight	1250 Kg
Dimension	1396mm1049mm1232mm

Cummins QSZ13-C575

Cummins QSZ13-C575 Construction Engine Specifications
Engine Model	QSZ13-C575
Rated Power	430kW/575HP
Rated Speed	1900RPM
Engine Type	6 Cylinders, Inline
Bore*Stroke(mm)	130 mm* 163mm
Displacement	13L
Compression Ratio	17:1
Peak Torque	2750N.m @1300-1500rpm
Fuel Consumption	64.4 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	HPCR
Packing Weight	1250 Kg
Dimension	1396mm1049mm1232mm
Cummins diesel engine QSZ13-C575 trade information
Warranty Time	1 year or 1000 hours, which one comes first
Delivery Port	Shanghai or any China port
Leading Time	15 working days
Trade Termes	FOB/CIF
Payement termes	T/T, L/C
