Cummins KTA38-C1100 Engine model from Chongqing Cummins Engine Plant (CCEC Cummins). Cummins KTA38-C1100 widely use on Heavy truck, Excavator, Road roller, Bulldozer, Crane, water pump.we can offer Cummins KTA38-C1100 genuine engine spare parts catalog or operation manuals.

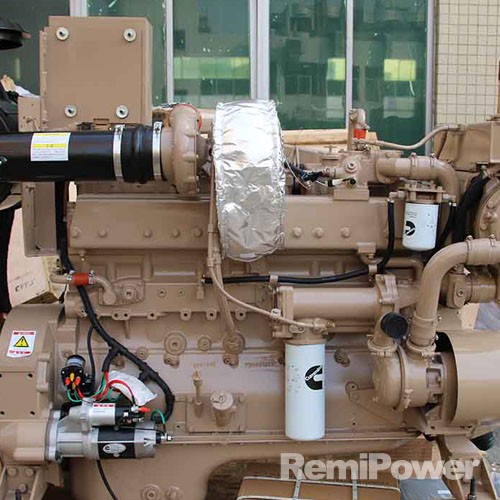

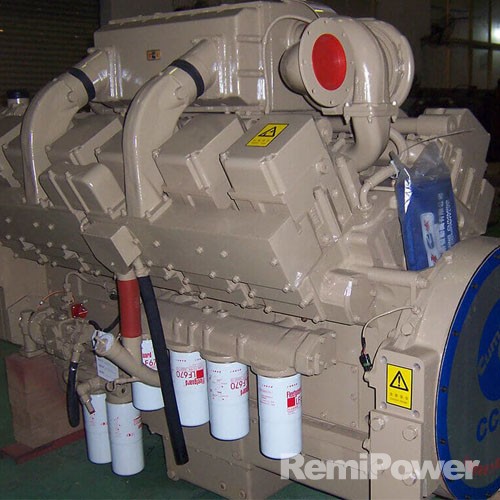

Cummins KTA38-C1100 Engineering Diesel Engine


Cummins KTA38-C1100 Construction Engine Specifications
Engine Model KTA38-C1100
Rated Power 821 kW/1100HP
Rated Speed 1800RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque 4702 N.m @ 1500 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  Cummins PT Pump
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm
Cummins diesel engine KTA38-C1100 trade information
Warranty Time 1 year or 1000 hours, which one comes first
Delivery Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF
Payement termes  T/T, L/C


(1) If you need KTA38-C1100 engine power pack with Radiator, Air Filter, Muffler, Engine Monitor, Engine Chassis, please further contact our sales
(2) We can provide the KTA38-C1100 complete engine, as well as the  KTA38-C1100 genuine Cummins engine spare parts.
