KTA19-D(M)

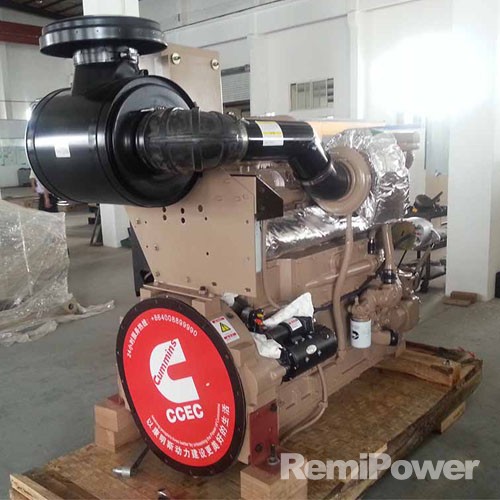

Cummins KTA19-D(M) Marine Diesel Engine Generator,Original from Chongqing Cummins Engine Company (CCEC). Genuine Cummins marine auxiliary engine KTA19-D(M)336,KTA19-D(M)392,KTA19-D(M)403,KTA19-D(M)448,KTA19-D(M)463,KTA19-D(M)507 with CCS/IMO certificates. Available for Cummins KTA19-D(M) genuine engine spare parts.
Enquiry

KTA19-D(M)336

Cummins  KTA19-D(M)336 Diesel Engine for Marine Generator Set
Engine Model KTA19-D(M)336
Rated Power 336kW
Rated Speed 1500RPM
Engine Type 6 Cylinders, in Line
Bore*Stroke(mm) 159mm*159mm
Displacement 19 L
Compression Ratio 14.5:1
Fuel Consumption 82.5 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Electronic Governor
Packing Weight 1814 KG
Dimension 1666mm*874mm*1377mm
Cummins diesel engine KTA19-D(M)336 trade information
Warranty Time 1 year or 1000 hours, which one comes first
Delivery Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF
Payement termes  T/T, L/C



KTA19-D(M)392

Cummins  KTA19-D(M)392 Diesel Engine for Marine Generator Set
Engine Model KTA19-D(M)392
Rated Power 392kW
Rated Speed 1800RPM
Engine Type 6 Cylinders, in Line
Bore*Stroke(mm) 159mm*159mm
Displacement 19 L
Compression Ratio 14.5:1
Fuel Consumption 98.4 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Electronic Governor
Packing Weight 1814 KG
Dimension 1666mm*874mm*1377mm



KTA19-D(M)403

Cummins  KTA19-D(M)403 Diesel Engine for Marine Generator Set
Engine Model KTA19-D(M)403
Rated Power 403kW
Rated Speed 1500RPM
Engine Type 6 Cylinders, in Line
Bore*Stroke(mm) 159mm*159mm
Displacement 19 L
Compression Ratio 14.5:1
Fuel Consumption 97 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Electronic Governor
Packing Weight 1814 KG
Dimension 1666mm*874mm*1377mm



KTA19-D(M)448

Cummins  KTA19-D(M)448 Diesel Engine for Marine Generator Set
Engine Model KTA19-D(M)448
Rated Power 448kW
Rated Speed 1500RPM
Engine Type 6 Cylinders, in Line
Bore*Stroke(mm) 159mm*159mm
Displacement 19 L
Compression Ratio 14.5:1
Fuel Consumption 112 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Electronic Governor
Packing Weight 1814 KG
Dimension 1666mm*874mm*1377mm

KTA19-D(M)463

Cummins  KTA19-D(M)463 Diesel Engine for Marine Generator Set
Engine Model KTA19-D(M)463
Rated Power 463kW
Rated Speed 1800RPM
Engine Type 6 Cylinders, in Line
Bore*Stroke(mm) 159mm*159mm
Displacement 19 L
Compression Ratio 14.5:1
Fuel Consumption 112 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Electronic Governor
Packing Weight 1814 KG
Dimension 1666mm*874mm*1377mm



KTA19-D(M)507

Cummins  KTA19-D(M)507 Diesel Engine for Marine Generator Set
Engine Model KTA19-D(M)507
Rated Power 507kW
Rated Speed 1800RPM
Engine Type 6 Cylinders, in Line
Bore*Stroke(mm) 159mm*159mm
Displacement 19 L
Compression Ratio 14.5:1
Fuel Consumption 120 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Electronic Governor
Packing Weight 1814 KG
Dimension 1666mm*874mm*1377mm
