Cummins 6CTA8.3-C240 Engine Model from Dongfeng Cummins Engine Plant (DCEC Cummins). 6CTA8.3-C240 used for mining, construction and industrial efficient and economical engineering machinery engine,Cummins 6CTA8.3-C240 original/genuine engine spare parts catalog and manual.

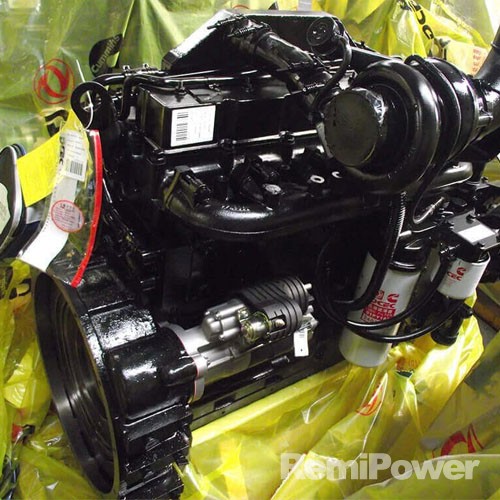

Cummins 6CTA8.3-C240 Engineering Diesel Engine

Cummins 6CTA8.3-C240 Construction Engine Specifications
Engine Model 6CTA8.3-C240
Rated Power  179 kW/240HP
Rated Speed 2200RPM
Engine Type 6 Cylinders, Inline
Bore*Stroke(mm) 114mm  * 135mm
Displacement  8.3L
Compression Ratio  18 : 1
Peak Torque 1028 N.m @1500r/min
Fuel Consumption  219g/Kw.h
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Weifu PW2000/RSV
Packing Weight  646Kg
Dimension  1560mm*900mm*1400mm
Cummins diesel engine 6CTA8.3-C240 trade information
Warranty Time 1 year or 1000 hours, which one comes first
Delivery Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF
Payement termes  T/T, L/C


(1) Cummins 6CTA8.3-C240  engine power pack with Radiator, Air Filter, Muffler, Engine Monitor, Engine Chassis avaialble
(2) We can provide the 6CTA8.3-C240  complete engine,also Cummins  6CTA8.3-C240genuine engine spare parts Cataloge.
