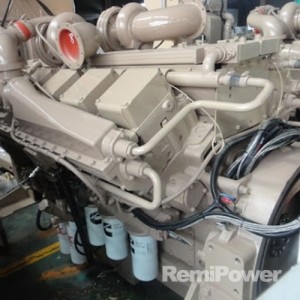

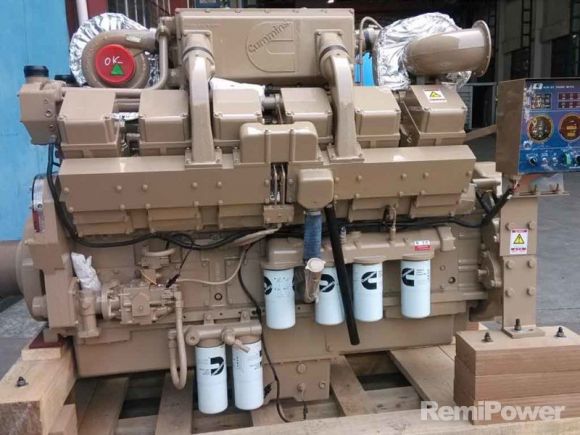

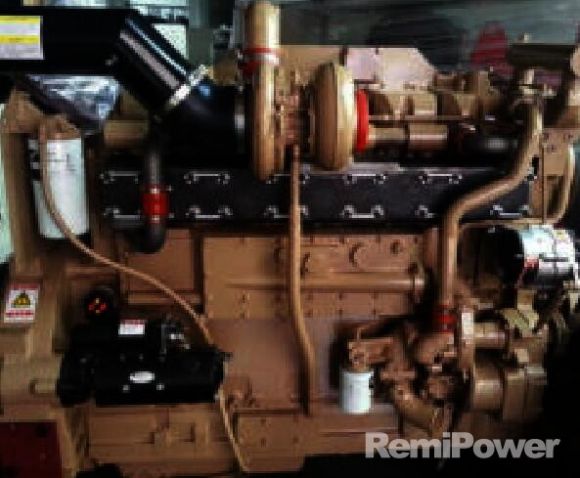

Cummins KTA38-D(M) Marine Diesel Engine Generator

‹ ›

KTA38-D(M)

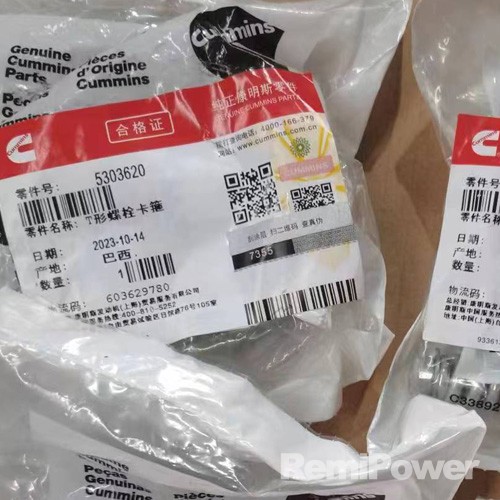

Cummins KTA38-D(M) Marine Diesel Engine Generator,Original from Chongqing Cummins Engine Company (CCEC). Genuine Cummins marine auxiliary engine KT38-D(M)560,KTA38-D(M)664,KT38-D(M)679,KTA38-D(M)768,KTA38-D(M)809,KTA38-D(M)814,KTA38-D(M)880，KTA38-D(M)1007 with CCS/IMO certificates. Available for Cummins KTA38-D(M) genuine engine spare parts.

Product Model:

Enquiry

KT38-D(M)560

Cummins KT38-D(M)560 Diesel Engine for Marine Generator Set
Engine Model	KT38-D(M)560
Rated Power	560kW
Rated Speed	1500RPM
Engine Type	12 Cylinders, V Type
Bore*Stroke(mm)	159mm*159mm
Displacement	37.8 L
Compression Ratio	15.5:1
Fuel Consumption	145 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Electronic Governor
Packing Weight	4300KG
Dimension	2003mm1362mm1661mm
Cummins diesel engine KT38-D(M)560 trade information
Warranty Time	1 year or 1000 hours, which one comes first
Delivery Port	Shanghai or any China port
Leading Time	15 working days
Trade Termes	FOB/CIF
Payement termes	T/T, L/C

KTA38-D(M)664

Cummins KTA38-D(M)664 Diesel Engine for Marine Generator Set
Engine Model	KTA38-D(M)664
Rated Power	664kW
Rated Speed	1500RPM
Engine Type	12 Cylinders, V Type
Bore*Stroke(mm)	159mm*159mm
Displacement	37.8 L
Compression Ratio	14.5:1
Fuel Consumption	167 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Electronic Governor
Packing Weight	4300KG
Dimension	2003mm1362mm1661mm

KT38-D(M)679

Cummins KT38-D(M)679 Diesel Engine for Marine Generator Set
Engine Model	KT38-D(M)679
Rated Power	679kW
Rated Speed	1800RPM
Engine Type	12 Cylinders, V Type
Bore*Stroke(mm)	159mm*159mm
Displacement	37.8 L
Compression Ratio	15.5:1
Fuel Consumption	167 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Electronic Governor
Packing Weight	4300KG
Dimension	2003mm1362mm1661mm

KTA38-D(M)768

Cummins KTA38-D(M)768 Diesel Engine for Marine Generator Set
Engine Model	KTA38-D(M)768
Rated Power	768kW
Rated Speed	1500RPM
Engine Type	12 Cylinders, V Type
Bore*Stroke(mm)	159mm*159mm
Displacement	37.8 L
Compression Ratio	15.5:1
Fuel Consumption	145 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Electronic Governor
Packing Weight	4300KG
Dimension	2003mm1362mm1661mm

KTA38-D(M)809

Cummins KTA38-D(M)809 Diesel Engine for Marine Generator Set
Engine Model	KTA38-D(M)809
Rated Power	809kW
Rated Speed	1800RPM
Engine Type	12 Cylinders, V Type
Bore*Stroke(mm)	159mm*159mm
Displacement	37.8 L
Compression Ratio	14.5:1
Fuel Consumption	204 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Electronic Governor
Packing Weight	4300KG
Dimension	2003mm1362mm1661mm

KTA38-D(M)814

Cummins KTA38-D(M)814 Diesel Engine for Marine Generator Set
ngine Model	KTA38-D(M)814
Rated Power	814kW
Rated Speed	1500RPM
Engine Type	12 Cylinders, V Type
Bore*Stroke(mm)	159mm*159mm
Displacement	37.8 L
Compression Ratio	14.5:1
Fuel Consumption	193 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Electronic Governor
Packing Weight	4300KG
Dimension	2003mm1362mm1661mm

KTA38-D(M)880

Cummins KTA38-D(M)880 Diesel Engine for Marine Generator Set
Engine Model	KTA38-D(M)880
Rated Power	880kW
Rated Speed	1500RPM
Engine Type	12 Cylinders, V Type
Bore*Stroke(mm)	159mm*159mm
Displacement	37.8 L
Compression Ratio	14.5:1
Fuel Consumption	209 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Electronic Governor
Packing Weight	4300KG
Dimension	2003mm1362mm1661mm

KTA38-D(M)1007

Cummins KTA38-D(M)1007 Diesel Engine for Marine Generator Set
Engine Model	KTA38-D(M)1007
Rated Power	1007kW
Rated Speed	1800RPM
Engine Type	12 Cylinders, V Type
Bore*Stroke(mm)	159mm*159mm
Displacement	37.8 L
Compression Ratio	14.5:1
Fuel Consumption	245 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Electronic Governor
Packing Weight	4300KG
Dimension	2003mm1362mm1661mm
