KTA38-M

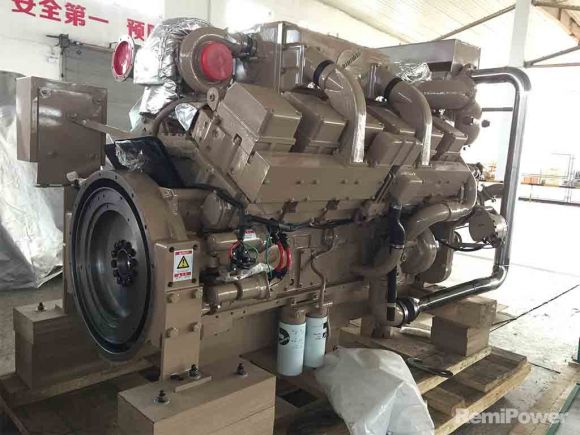

Cummins KTA38-M Marine Diesel Engine,Original from Chongqing Cummins Engine Company (CCEC). Genuine Cummins marine propulsion engine KT38-M600,KT38-M780,KTA38-M800,KTA38-M1, KTA38-M2 with sea water pump, heat exchanger, CCS/IMO certificates. Available for KTA38-M marine Engine, Gearbox, Propeller, Shaft.and Cummins KTA38-M genuine engine spare parts.
Enquiry

Cummins KT38-M600

Cummins KT38-M600 Diesel Engine for Marine
Engine Model KT38-M600
Rated Power 448 kW/600HP
Rated Speed 1800RPM
Engine Type 12 Cylinders, V Type
Bore*Stroke(mm) 159mm*159mm
Displacement  37.8 L
Compression Ratio  15:1
Peak Torque 2612 N.m @ 1500 rpm
Fuel Consumption 116 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Mechanical Governor
Packing Weight  4300kg
Dimension 2700mm*1550mm*2200mm



Cummins KT38-M780

Cummins KT38-M780 Diesel Engine for Marine
Engine Model KT38-M780
Rated Power 582 kW/780HP
Rated Speed 1800RPM
Engine Type 12 Cylinders, V Type
Bore*Stroke(mm) 159mm*159mm
Displacement 37.8 L
Compression Ratio 15.5:1
Peak Torque
Fuel Consumption 142 L/hr
Aspiration Type Turbocharged
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Mechanical Governor
Packing Weight 4700KG
Dimension 2700mm*1550mm*2200mm



Cummins KTA38-M800

Cummins KTA38-M800 Diesel Engine for Marine
Engine Model KTA38-M800
Rated Power 596kW/800HP
Rated Speed 1800RPM
Engine Type 12 Cylinders, V Type
Bore*Stroke(mm) 159mm*159mm
Displacement 37.8 L
Compression Ratio 13.9:1
Peak Torque
Fuel Consumption 147 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Mechanical Governor
Packing Weight 4700KG
Dimension 2700mm*1550mm*2200mm



Cummins KTA38-M1-900HP

Cummins KTA38-M1-900HP Diesel Engine for Marine
Engine Model KTA38-M900
Rated Power 671 kW/900HP
Rated Speed 1600RPM
Engine Type 12 Cylinders, V Type
Bore*Stroke(mm) 159mm*159mm
Displacement 37.8 L
Compression Ratio 15.5:1
Peak Torque
Fuel Consumption 166L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Mechanical Governor
Packing Weight 4700KG
Dimension 2700mm*1550mm*2200mm



Cummins KTA38-M1-1000HP

Cummins KTA38-M1-1000HP Diesel Engine for Marine
Engine Model KTA38-M1000
Rated Power 746kW/1000HP
Rated Speed 1800RPM
Engine Type 12 Cylinders, V Type
Bore*Stroke(mm) 159mm*159mm
Displacement 37.8 L
Compression Ratio 13.9:1
Peak Torque
Fuel Consumption 126.8L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Mechanical Governor
Packing Weight 4700KG
Dimension 2700mm*1550mm*2200mm



Cummins KTA38-M2-1200HP

Cummins KTA38-M2-1200HP Diesel Engine for Marine
Engine Model KTA38-M1200
Rated Power 895kW/1200HP
Rated Speed 1800RPM
Engine Type 12 Cylinders, V Type
Bore*Stroke(mm) 159mm*159mm
Displacement 37.8 L
Compression Ratio 13.9:1
Peak Torque
Fuel Consumption 224 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Mechanical Governor
Packing Weight 4700KG
Dimension 2700mm*1550mm*2200mm

Cummins KTA38-M2



Cummins KTA38-M2-1300HP Diesel Engine for Marine
Engine Model KTA38-M1300
Rated Power 969kW/1300HP
Rated Speed 1800RPM
Engine Type 12 Cylinders, V Type
Bore*Stroke(mm) 159mm*159mm
Displacement 37.8 L
Compression Ratio 13.9:1
Peak Torque
Fuel Consumption 235 L/hr
Aspiration Type Turbocharged & Aftercooled
Cooling Method Water Cooled
Start Type 24V, Electric Start
Fuel System Cummins PT Pump
Governor Method Mechanical Governor
Packing Weight 4700KG
Dimension 2700mm*1550mm*2200mm
