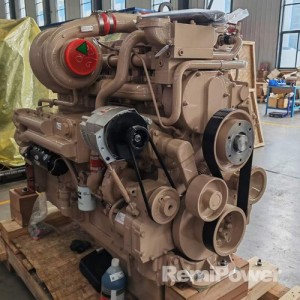

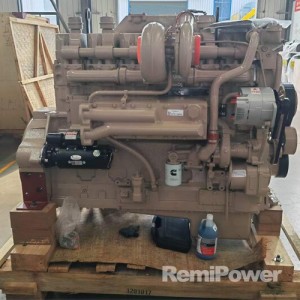

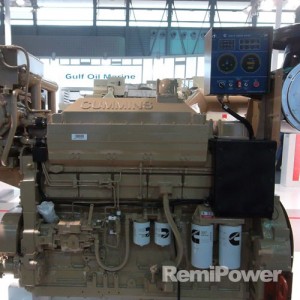

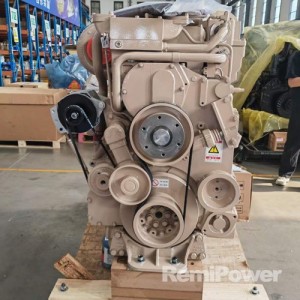

Cummins KTA19-M Diesel Marine Engine

‹ ›

KTA19-M

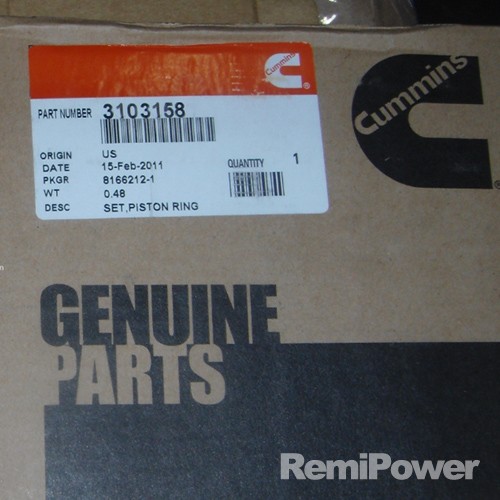

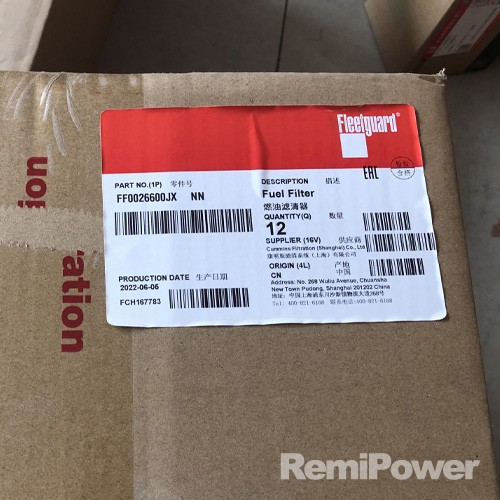

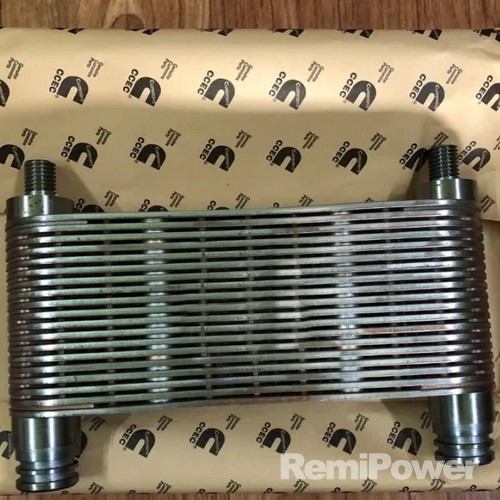

Cummins KTA19-M Marine Diesel Engine,Original from Chongqing Cummins Engine Company (CCEC). Genuine Cummins marine propulsion engine KT19-M425,KT19-M470,KT19-M500,KTA19-M3-500HP,KTA19-M3-600HP,KTA19-M3-640HP,KTA19-M4 with sea water pump, heat exchanger, CCS/IMO certificates. Available for KTA19-M marine Engine, Gearbox, Propeller, Shaft.and Cummins KTA19-M genuine engine spare parts.

Product Model:

Enquiry

Cummins KT19-M425

Cummins KT19-M425 Diesel Engine
Engine Model	KT19-M425
Rated Power	317 kW/425HP
Rated Speed	1800RPM
Engine Type	6 Cylinders, in Line
Bore*Stroke(mm)	159mm*159mm
Displacement	19 L
Compression Ratio	15.5:1
Peak Torque	1851 N.m @ 1500 rpm
Fuel Consumption	79 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Mechanical Governor
Packing Weight	2600KG
Dimension	2450mm1150mm2000mm

Cummins KT19-M470

Cummins KTA19-M470 Diesel Engine for Marine
Engine Model	KTA19-M470
Rated Power	351 kW/470HP
Rated Speed	1800RPM
Engine Type	6 Cylinders, in Line
Bore*Stroke(mm)	159mm*159mm
Displacement	19 L
Compression Ratio	15.5:1
Peak Torque	1950N.m @1500r/min
Fuel Consumption	87 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Mechanical Governor
Packing Weight	2600KG
Dimension	2450mm1150mm2000mm

Cummins KT19-M500

Cummins KTA19-M500 Diesel Engine for Marine
Engine Model	KTA19-M500
Rated Power	373 kW/500HP
Rated Speed	1800RPM
Engine Type	6 Cylinders, in Line
Bore*Stroke(mm)	159mm*159mm
Displacement	19 L
Compression Ratio	15.5:1
Peak Torque	2077 N.m @ 1500 rpm
Fuel Consumption	87 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Mechanical Governor
Packing Weight	2600KG
Dimension	2450mm1150mm2000mm

Cummins KTA19-M3-500HP

Cummins KTA19-M3-500HP Diesel Engine for Marine
Engine Model	KT19-M3
Rated Power	373 kW/500HP
Rated Speed	1800RPM
Engine Type	6 Cylinders, in Line
Bore*Stroke(mm)	159mm*159mm
Displacement	19 L
Compression Ratio	15.5:1
Peak Torque	2242 N.m @ 1400 rpm
Fuel Consumption	79 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Mechanical Governor
Packing Weight	2600KG
Dimension	2450mm1150mm2000mm

Cummins KTA19-M3-600HP

Cummins KTA19-M3-600HP Diesel Engine for Marine
Engine Model	KTA19-M3
Rated Power	447 kW/600HP
Rated Speed	1800RPM
Engine Type	6 Cylinders, in Line
Bore*Stroke(mm)	159mm*159mm
Displacement	19 L
Compression Ratio	13.8:1
Peak Torque	2680 N.m @ 1400 rpm
Fuel Consumption	96 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Mechanical Governor
Packing Weight	2600KG
Dimension	2450mm1150mm2000mm

Cummins KTA19-M3-640HP

Cummins KTA19-M3-640HP Diesel Engine for Marine
Engine Model	KTA19-M3
Rated Power	477 kW/640HP
Rated Speed	1800rpm
Engine Type	6 Cylinders, in Line
Bore*Stroke(mm)	159mm*159mm
Displacement	19 L
Compression Ratio	13.8:1
Peak Torque	2531 N.m @ 1400 rpm
Fuel Consumption	96 L/hr
Aspiration Type	Turbocharged & Aftercooled
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Mechanical Governor
Packing Weight	2600KG
Dimension	2450mm1150mm2000mm

Cummins KTA19-M4

Cummins KTA19-M4 Diesel Engine for Marine
Engine Model	KTA19-M4
Rated Power	522 kW/700HP
Rated Speed	2100rpm
Engine Type	6 Cylinders, in Line
Bore*Stroke(mm)	159mm*159mm
Displacement	19 L
Compression Ratio	13.8 : 1
Peak Torque	2586 N.m @ 1400 rpm
Fuel Consumption	140.6 L/hr
Aspiration Type	Turbocharged
Cooling Method	Water Cooled
Start Type	24V, Electric Start
Fuel System	Cummins PT Pump
Governor Method	Mechanical Governor
Packing Weight	2600KG
Dimension	2450mm1150mm2000mm
