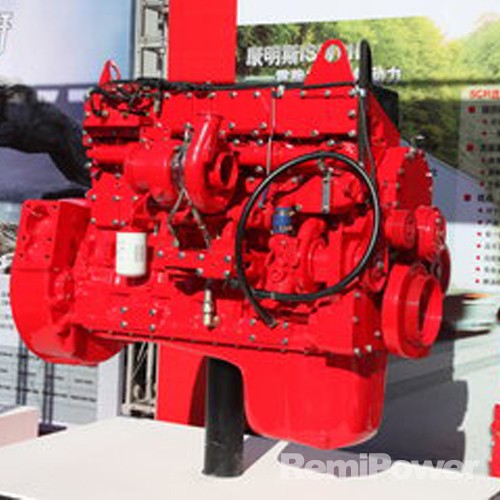

| Cummins KTA19-G2 Diesel Engine for Generator Set | |
| Engine Model | KTA19-G2 |
| Rated Power &Speed | 336kW(450HP)@ 1500rpm |
| Standby Power &Speed | 369kW(495HP)@ 1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins diesel engine KTA19-G2 trade information | |
| Warranty Time | 1 year or 1000 hours, which one comes first |
| Delivery Port | Shanghai or any China port |
| Leading Time | 15 working days |
| Trade Termes | FOB/CIF |
| Payement termes | T/T, L/C |
| Cummins KTA19-G3 Diesel Engine for Generator Set | |
| Engine Model | KTA19-G3 |
| Rated Power &Speed | 403kW(540HP)@ 1500rpm |
| Standby Power &Speed | 448kW(600HP)@ 1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins KTA19-G3A Diesel Engine for Generator Set | |
| Engine Model | KTA19-G3A |
| Rated Power &Speed | 448kW(600HP)@ 1500rpm |
| Standby Power &Speed | 504kW(675HP)@ 1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins KTA19-G4 Diesel Engine for Generator Set | |
| Engine Model | KTA19-G4 |
| Rated Power &Speed | 448kW(600HP)@ 1500rpm |
| Standby Power &Speed | 504kW(675HP)@ 1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins KTAA19-G5 Diesel Engine for Generator Set | |
| Engine Model | KTAA19-G5 |
| Rated Power &Speed | 502kW(673HP)@1500rpm |
| Standby Power &Speed | 555kW(744HP)@1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins KTAA19-G6 Diesel Engine for Generator Set | |
| Engine Model | KTAA19-G6 |
| Rated Power &Speed | |
| Standby Power &Speed | 570 kW/764HP @ 1500 rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins KTAA19-G6A Diesel Engine for Generator Set | |
| Engine Model | KTAA19-G6A |
| Rated Power &Speed | |
| Standby Power &Speed | 610kW(818HP)@1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins KTAA19-G7 Diesel Engine for Generator Set | |
| Engine Model | KTAA19-G7 |
| Rated Power &Speed | |
| Standby Power &Speed | 610kW(818HP)@ 1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins KTA19-G8 Diesel Engine for Generator Set | |
| Engine Model | KTA19-G8 |
| Rated Power &Speed | |
| Standby Power &Speed | 575kW(771HP)@ 1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 14.5:1 |
| Fuel Consumption | 98 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins QSKTAA19-G3 Diesel Engine for Generator Set | |
| Engine Model | KTAA19-G6A |
| Rated Power &Speed | 574kW(770HP)@ 1500rpm |
| Standby Power &Speed | 634kW(850HP)@ 1500rpm |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 159mm*159mm |
| Displacement | 19 L |
| Compression Ratio | 13.9 : 1 |
| Fuel Consumption | 107 L/hr |
| Aspiration Type | Turbocharged & Aftercooled |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | PT Pump, Direct Injection |
| Governor Method | Electronic Governor |
| Packing Weight | 1970 Kg |
| Dimension | 1324mm*835mm*1183mm |
| Cummins diesel engine QSKTAA19-G3 trade information | |
| Warranty Time | 1 year or 1000 hours, which one comes first |
| Delivery Port | Shanghai or any China port |
| Leading Time | 15 working days |
| Trade Termes | FOB/CIF |
| Payement termes | T/T, L/C |

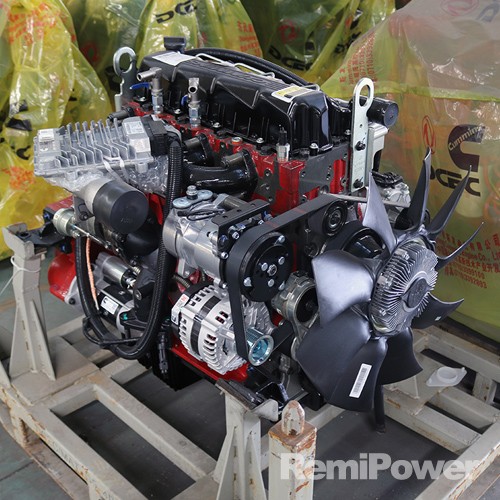

6BT5.9-GM100
Cummins 6BT5.9-GM100 Engine model from Dongfeng Cummins Engine Plant (DCEC Cummins).Genuine Cummins marine auxiliary engine 6BT5.9-GM100 with CCS/IMO certificates.
if you need Cummins 6BT5.9-GM100 original/genuine engine spare parts catalog or manual,pls contact our sales team
5287123 Alternator
Cummins Alternator 5287123
3637870 FUEL CONNECTION GASKET
Cummins QSK60 GASKET,FUEL CONNECTION 3637870

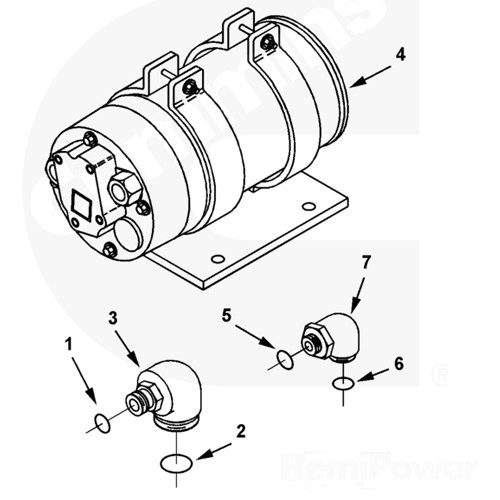

3921652 Fuel Drain Tube
Cummins 6C8.3 Fuel Drain Tube 3921652 engine spare Parts
