Cummins 6LTAA8.9 Genuine Spare Parts
NO. | OPTION NUMBER | OPTION NAME | QTY | GRAPHS |
AP 9484 | APPROVAL,AGENCY | 1 | ||
1 | C3415394 | SCREW,DRIVE | 2 | |
2 | C4992259 | DATAPLATE | 1 | |

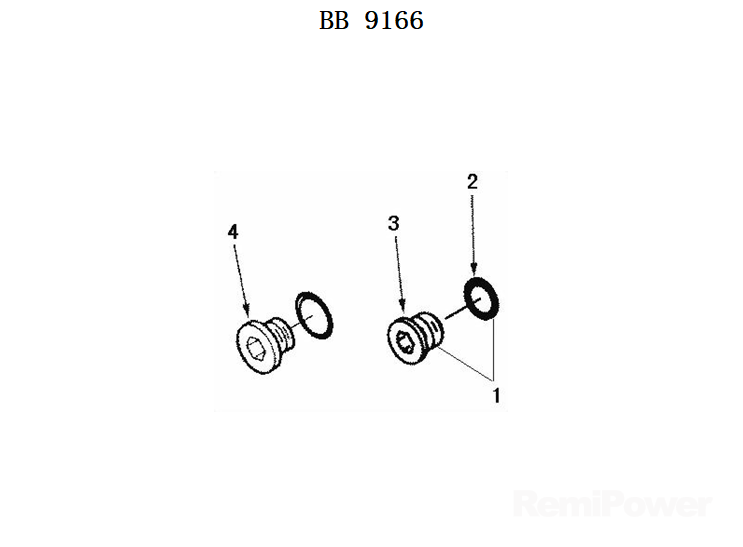

BB 9166 | PLUMBING,CYL BLK LBC | 1 | ||
1 | C3678921 | PLUG,THREADED | 1 | |
2 | C3678912 | SEAL,O RING | 1 | |
3 | C3678922 | PLUG,THREADED | 1 | |
4 | C3678923 | PLUG,THREADED | 6 | |

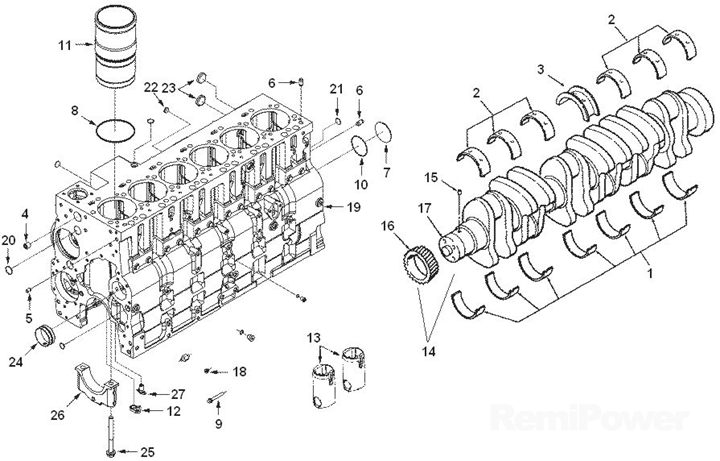

BB 9171 | BLOCK,CYLINDER | 1 | ||
1 | 3944153 | BEARING,MAIN | 7 | |
2 | 3944158 | BEARING,MAIN | 6 | |
3 | 3944163 | BEARING,CRANKSHAFT THRUS | 1 | |

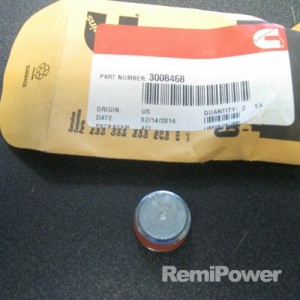

4 | C3008468 | PLUG,PIPE | 1 | |
5 | C3900257 | DOWEL, PIN | 2 | |
6 | C3901846 | DOWEL,PIN | 4 | |
7 | C3901969 | PLUG,EXPANSION | 1 | |
8 | C3907177 | SEAL,RECTANGULAR | 6 | |
9 | C3909025 | SCREW,HEX FLANGE HEAD | 6 | |
10 | C3926048 | SEAL,O RING | 1 | |
11 | C3948095 | LINER,CYLINDER | 6 | |
12 | C3959291 | NOZZLE,PISTON COOLING | 6 | |
13 | C3965966 | TAPPET,VALVE | 12 | |
14 | C3976841 | CRANKSHAFT,ENGINE | 1 | |
15 | C3904483 | DOWEL, PIN | 1 | |

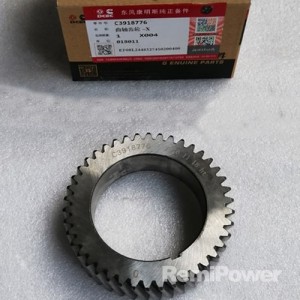

16 | C3918776 | GEAR,CRANKSHAFT | 1 | |
17 | C4989436 | CRANKSHAFT, ENGINE | 1 | |
18 | C4944725 | GUIDE,TAPPET | 12 | |
19 | C4946152 | BLOCK,CYLINDER | 1 | |
20 | C143066 | PLUG,EXPANSION | 3 | |
21 | C3004258 | PLUG,EXPANSION | 4 | |
22 | C3900956 | PLUG,EXPANSION | 3 | |
23 | C3905401 | PLUG,EXPANSION | 4 | |
24 | C3945329 | BUSHING,CAMSHAFT | 7 | |
25 | C3970810 | SCREW,HEX FLANGE | 14 | |
26 | C3970955 | CAP,MAIN BEARING | 7 | |
27 | CS 923 E | DRAINCOCK | 1 | |
BB 9218 | PLUMBING,CYL BLK COOLANT | 1 | ||
1 | C3008468 | PLUG,PIPE | 1 | |
2 | C3008469 | PLUG,PIPE | 2 | |

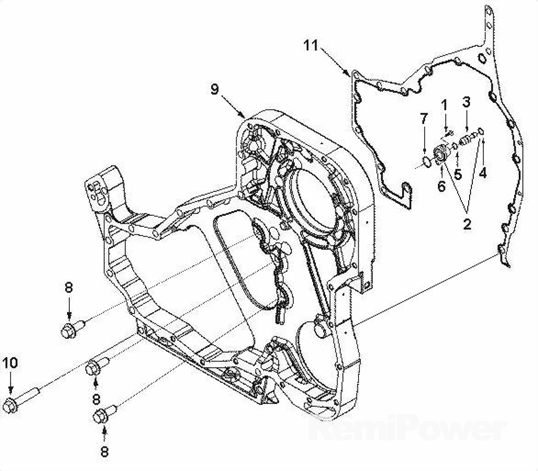

BB 9881 | HOUSING,FRONT GEAR | 1 | ||
1 | C3907998 | SCREW,ROUND HEAD CAP | 2 | |
2 | C3913995 | HOUSING,TIMING PIN | 1 | |
3 | C3903924 | PIN,TIMING | 1 | |
4 | C3904849 | RING,RETAINING | 1 | |
5 | C3913994 | SEAL,O RING | 1 | |
6 | C3919683 | HOUSING,TIMING PIN | 1 | |
7 | C3915772 | SEAL,RECTANGLE | 1 | |
8 | C3926846 | SCREW,HEX FLANGE HEAD CA | 3 | |
9 | C3938086 | HOUSING,GEAR | 1 | |
10 | C3943885 | SCREW,HEX FLANGE HEAD | 3 | |
11 | C3944293 | GASKET,GEAR HOUSING | 1 | |

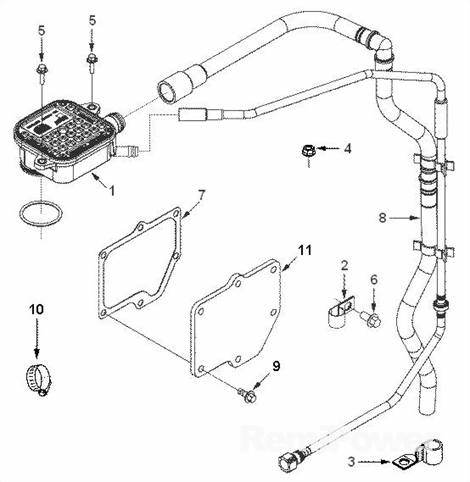

BR 9239 | BREATHER,CRANKCASE | 1 | ||
1 | 3964093 | HOUSING,BREATHER | 1 | |
2 | 69911 A | CLIP | 1 | |
3 | C152767 | CLIP | 1 | |
4 | C3900589 | NUT,HEXAGON FLANGE | 1 | |
5 | C3901865 | SCREW,HEX FLANGE HEAD CA | 2 | |
6 | C3925883 | SCREW,HEX FLANGE HEAD | 1 | |
7 | C3970886 | GASKET,BREATHER | 1 | |
8 | C3974546 | TUBE,LUB OIL DRAIN | 1 | |
9 | C3991306 | SCREW HEX FLANGE HEAD | 6 | |
10 | C43828 A | CLAMP,HOSE | 1 | |
11 | C4940384 | PLATE,COVER | 1 | |
CH 9087 | PLUMBING,COO HTR STG AID | 1 | ||
1 | C3008469 | PLUG,PIPE | 1 | |
CI 9124 | ARRANGEMENT,CPR AIR INLE | 1 | ||
1 | C3008469 | PLUG,PIPE | 1 | |

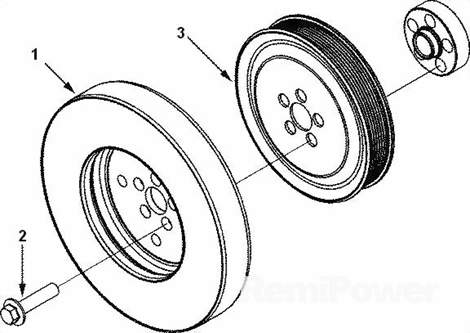

DA 9155 | DAMPER,VIBRATION | 1 | ||
1 | 3967014 | DAMPER,VIBRATION | 1 | |
2 | C3914118 | SCREW,HEX FLANGE HEAD CA | 5 | |
3 | C3943978 | PULLEY,CRANKSHAFT | 1 | |

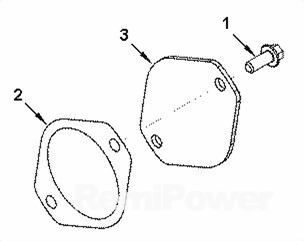

DF 9709 | DRIVE,FRT GR TR ACCES | 1 | ||
1 | C3901249 | SCREW,HEX FLANGE HEAD | 2 | |
2 | C3938655 | GASKET,ACC DRIVE COVE | 1 | |
3 | C4942479 | PLATE,COVER | 1 | |

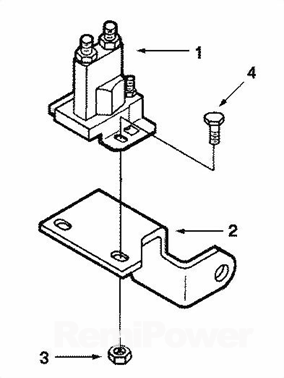

EA 9077 | ACCESSORIES,ELECTRICAL | 1 | ||
1 | 3916302 | SWITCH,MAGNETIC | 1 | |
2 | C3068915 | BRACKET,MAGNETIC SWIT | 1 | |
3 | C3906216 | NUT,HEXAGON FLANGE | 2 | |
4 | C3913638 | SCREW,HEX FLANGE HEAD CA | 2 | |
EA 9089 | ACCESSORIES,ELECTRICAL | 1 | ||

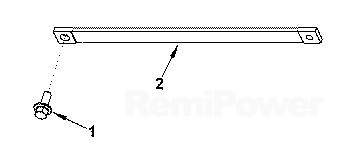

1 | C3903990 | SCREW,HEX FLANGE HEAD | 1 | |
2 | C4932506 | WIRE,GROUND | 1 | |
EC 9702 | THERMOSTAT | 1 | ||
1 | C3968559 | THERMOSTAT | 1 | |

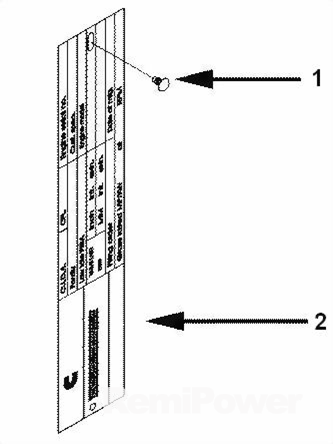

ED 9071 | DOCUMENTATIO,ENG IDT | 1 | ||
1 | C3974406 | TAG,IDENTIFICATI | 1 | |
2 | C3975443 | COVER,PROTECTIVE | 1 | |

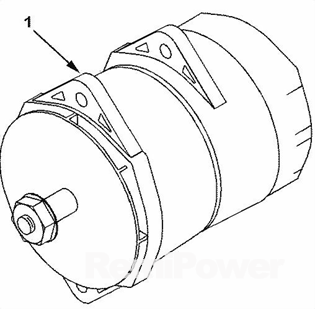

EE 9207 | ALTERNATOR | 1 | ||
1 | C3415691 | ALTERNATOR | 1 | |

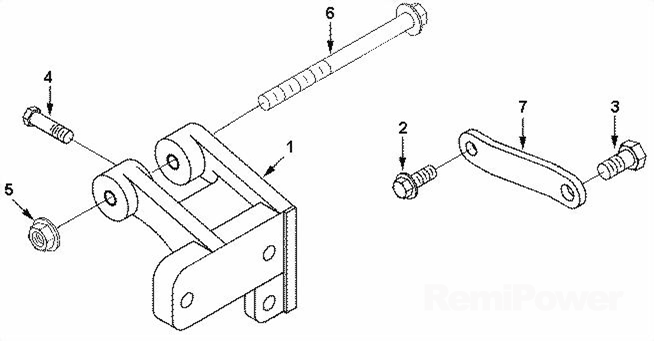

EH 9591 | MOUNTING,ALTERNATOR | 1 | ||
1 | C3415692 | BRACKET,ALTERNATOR | 1 | |
2 | C3901249 | SCREW,HEX FLANGE HEAD | 1 | |
3 | C3902460 | SCREW,HEX FLANGE HEAD | 1 | |
4 | C3903112 | SCREW,HEX FLANGE HEAD CA | 3 | |
5 | C3903210 | NUT,HEXAGON FLANGE | 1 | |
6 | C3919952 | SCREW,HEX FLANGE HEAD | 1 | |
7 | C3944312 | BRACER,ALTERNATOR | 1 | |

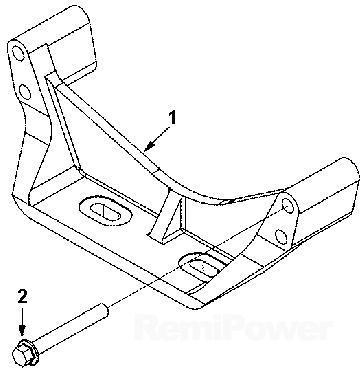

EM 9225 | SUPPORT,FRONT ENGINE | 1 | ||
1 | C3415686 | SUPPORT,FRONT ENGINE | 1 | |
2 | Q1841290-0H1 | SCREW,HEX FLANGE HEAD | 4 | |

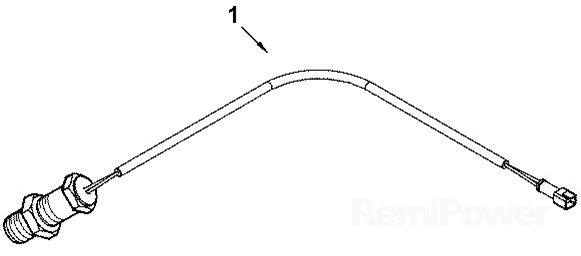

EO 9157 | DEVICE,SIGNAL GENERATIN | 1 | ||
1 | C3971994 | Sensor,Speed | 2 | |

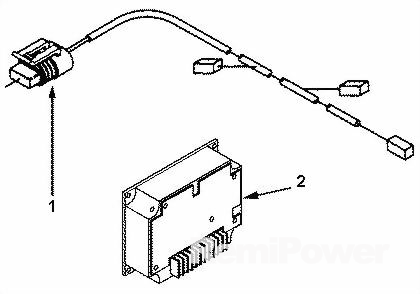

ES 9178 | GOVERNOR,FUEL | 1 | ||
1 | EC1300 | CONNECTOR | 1 | |
2 | ESD5500E | CONTROL UNIT | 1 | |

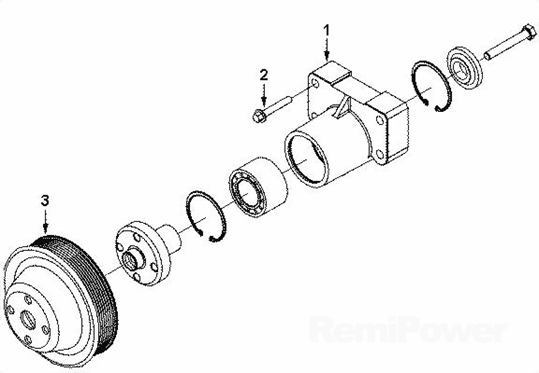

FA 9310 | DRIVE,FAN | 1 | ||
1 | C3415603 | SUPPORT,FAN | 1 | |
2 | C3900634 | SCREW,HEX FLANGE HEAD CA | 4 | |
3 | C3926855 | PULLEY,FAN | 1 | |

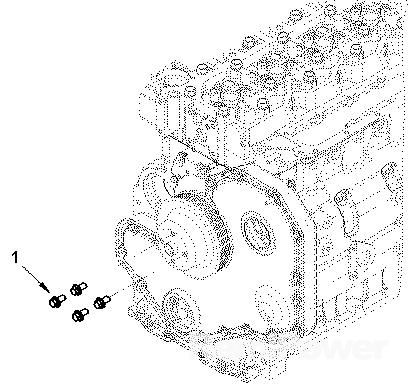

FA 9739 | DRIVE,FAN | 1 | ||
1 | C3903990 | SCREW,HEX FLANGE HEAD | 4 | |

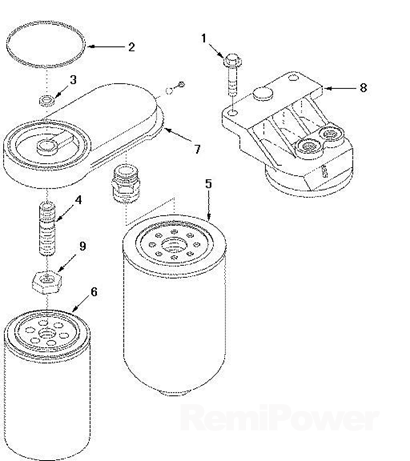

FF 9593 | FILTER,FUEL | 1 | ||
1 | C3900632 | SCREW,HEX FLANGE HEAD | 2 | |
2 | C3906694 | SEAL,RECTANGLE | 1 | |
3 | C3906695 | SEAL,RECTANGLE | 1 | |
4 | C3925955 | ADAPTER,FILTER HEAD | 1 | |
5 | C3930942 | FILTER,FUEL | 1 | |
6 | C3931063 | FILTER,FUEL | 1 | |
7 | C4934663 | HEAD,FUEL FILTER | 1 | |
8 | L00270 | HEAD,FUEL FILTER | 1 | |
9 | Q351B16-3H1 | NUT,HEXAGON | 1 | |

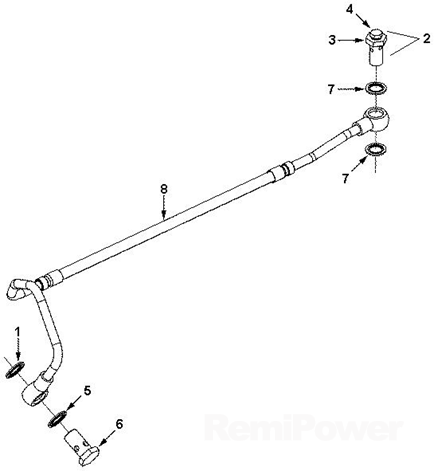

FF 9594 | PLUMBING,FUEL FILTER | 1 | ||
1 | C3863988 | WASHER,SEALING | 1 | |
2 | C3905860 | SCREW,BANJO CONNECTOR | 1 | |
3 | C3911446 | SCREW,BANJO CONNECTOR | 1 | |
4 | C3939570 | Screw,Captive washer cap | 1 | |
5 | C3918192 | WASHER,SEALING | 1 | |
6 | C3924725 | SCREW,BANJO CONNECTOR | 1 | |
7 | C3963983 | WASHER,SEALING | 2 | |
8 | C3971123 | TUBE,FUEL SUPPLY | 1 | |

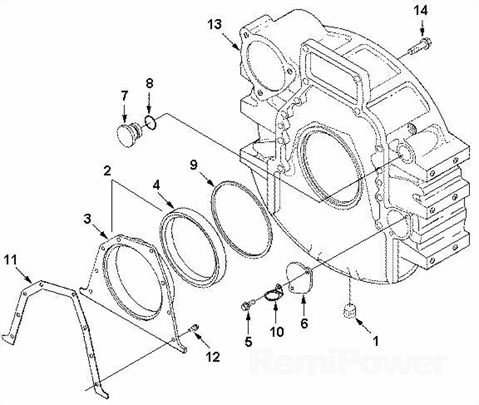

FH 9615 | HOUSING,FLYWHEEL | 1 | ||
1 | C3008469 | PLUG,PIPE | 1 | |
2 | C3357700 | COVER,REAR | 1 | |
3 | C3933384 | COVER,REAR | 1 | |
4 | C3968563 | SEAL,OIL | 1 | |
5 | C3900629 | SCREW,HEX FLANGE HEAD | 2 | |
6 | C3908095 | Plate,Cover | 1 | |
7 | C3910248 | PLUG,O RING | 1 | |
8 | C3910260 | SEAL,O RING | 1 | |
9 | C3912473 | SEAL,RECTANGULAR RING | 1 | |
10 | C3928989 | CLIP | 1 | |
11 | C3939353 | GASKET,CARRIER | 1 | |
12 | C3991306 | SCREW HEX FLANGE HEAD | 8 | |
13 | C4934902 | HOUSING,FLYWHEEL | 1 | |
14 | Q1841240-0H1 | SCREW,HEX HEAD CAP | 12 | |

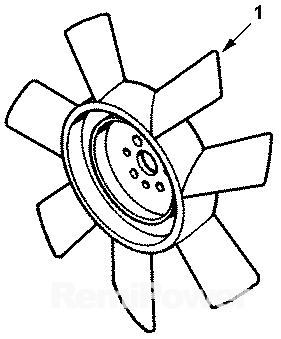

FN 9154 | FAN,ENGINE | 1 | ||
1 | D3911326 | FAN,ENGINE | 1 | |

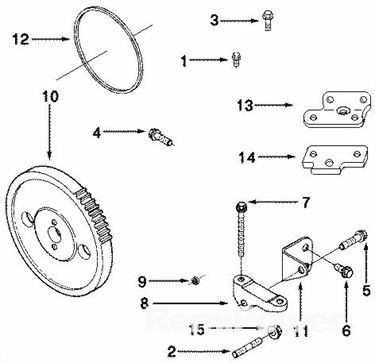

FP90370 | MOUNTING,FUEL PUMP | 1 | ||
1 | C3093930 | SCREW,HEX FLANG HEAD | 2 | |
2 | C3282372 | STUD | 4 | |
3 | C3284531 | SCREW,HEX FLANG HEAD | 1 | |
4 | C3900632 | SCREW,HEX FLANGE HEAD | 2 | |
5 | C3903464 | SCREW,HEX FLANGE HEAD | 1 | |
6 | C3903990 | SCREW,HEX FLANGE HEAD | 2 | |
7 | C3913366 | SCREW,HEX FLANGE HEAD CA | 2 | |
8 | C3926273 | SUPPORT,FUEL PUMP | 1 | |
9 | C3926722 | SEAL,RECTANGULAR RING | 1 | |
10 | C3931380 | GEAR,FUEL PUMP | 1 | |
11 | C3938091 | SUPPORT,FUEL PUMP | 1 | |
12 | C3969698 | SEAL,O RING | 1 | |
13 | C3971488 | BRACE,FUEL PUMP | 1 | |
14 | C3971489 | SUPPORT,FUEL PUMP | 1 | |
15 | Q32010 | NUT,HEXAGON FLANGE | 4 | |

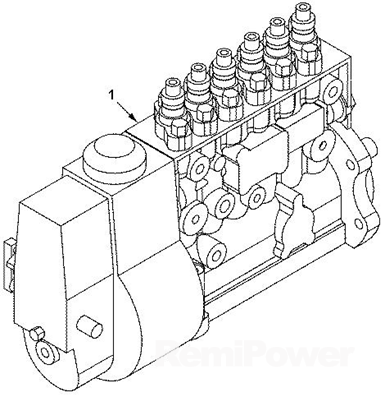

FP91270 | PUMP,FUEL | 1 | ||
1 | C4944057 | PUMP,FUEL INJECTION | 1 | |

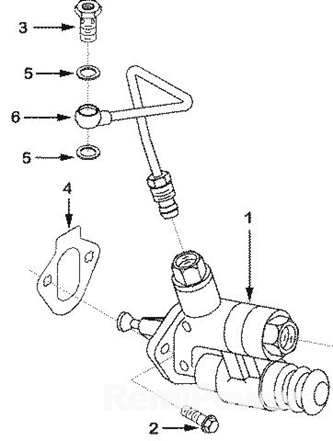

FS 9849 | PUMP,FUEL TRANSFER | 1 | ||
1 | C3415661 | PUMP,FUEL TRANSFER | 1 | |
2 | C3909310 | SCREW,HEX FLANGE HEAD | 2 | |
3 | C3916361 | SCREW,BANJO CONNECTOR | 1 | |
4 | C3939258 | GASKET,COVER PLATE | 1 | |
5 | C3963983 | WASHER,SEALING | 2 | |
6 | C3971124 | TUBE,FUEL SUPPLY | 1 | |

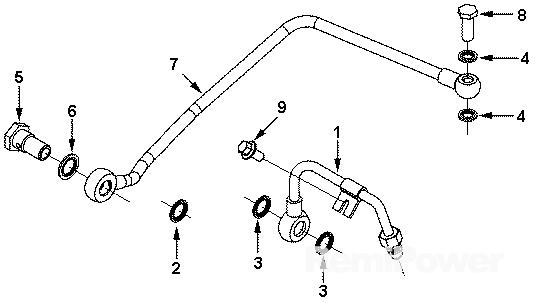

FT 9127 | PLUMBING,FUEL | 1 | ||
1 | C3415562 | TUBE,FUEL DRAIN | 1 | |
2 | C3863988 | WASHER,SEALING | 1 | |
3 | C3863988 | WASHER,SEALING | 2 | |
4 | C3918188 | WASHER,SEALING | 2 | |
5 | C3957290 | VALVE,CHECK | 1 | |
6 | C3963983 | WASHER,SEALING | 1 | |
7 | C3971125 | TUBE,FUEL DRAIN | 1 | |
8 | C4931051 | SEAL,BANJO CONNECTOR | 1 | |
9 | Q1840612-0H1 | SCREW,HEX FLANGE HEAD | 1 | |

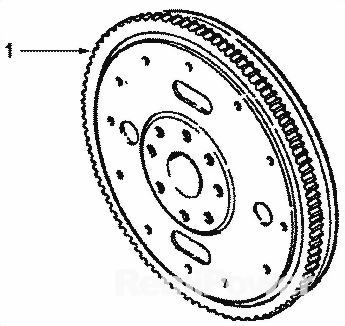

FW 9826 | FLYWHEEL | 1 | ||
1 | C3415350 | FLYWHEEL | 1 | |
FW90025 | MOUNTING,FLYWHEEL | 1 | ||
1 | C3900269 | Washer,Plain | 4 | |
2 | C3900269 | Washer,Plain | 4 | |
3 | C3977274 | SCREW,HEXAGON HEAD CAP | 4 | |
4 | C3977274 | SCREW,HEXAGON HEAD CAP | 4 | |
GG 9804 | MOUNTING,GEAR COVER | 1 | ||
1 | C3925883 | SCREW,HEX FLANGE HEAD | 2 | |

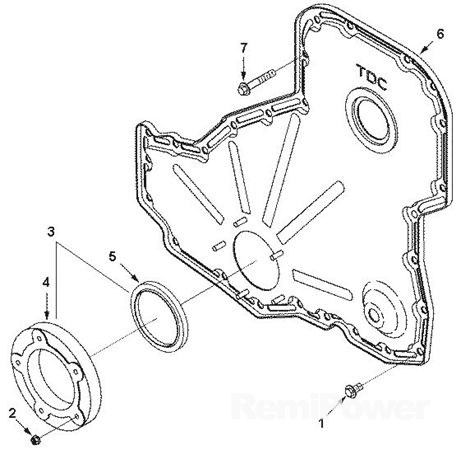

GG 9806 | COVER,FRONT GEAR | 1 | ||
1 | C3925883 | SCREW,HEX FLANGE HEAD | 13 | |
2 | C3938077 | NUT,LOCK | 5 | |
3 | C3942535 | SEAL,OIL | 1 | |
4 | C3941786 | CARRIER,SEAL | 1 | |
5 | C3968562 | SEAL,OIL | 1 | |
6 | C3943813 | COVER,GEAR | 1 | |
7 | Q1840850-0H1-J1 | SCREW,HEX HEAD CAP | 11 | |
HC 9115 | PLUMBING,CABIN HEATER | 1 | ||
1 | C156075 | PLUG,EXPANSION | 2 | |
2 | C3008469 | PLUG,PIPE | 2 | |
3 | C3008469 | PLUG,PIPE | 1 | |

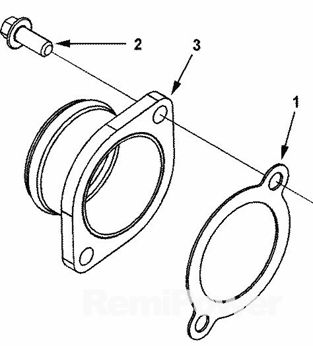

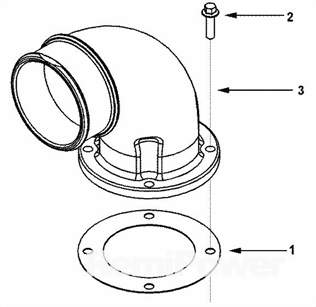

IC 9297 | CONNECTION,AIR INTAKE | 1 | ||
1 | 3917892 | GASKET,CONNECTION | 1 | |
2 | C3900631 | SCREW,HEX FLANGE HEAD | 4 | |
3 | C3928519 | CONNECTION,AIR INTAKE | 1 | |

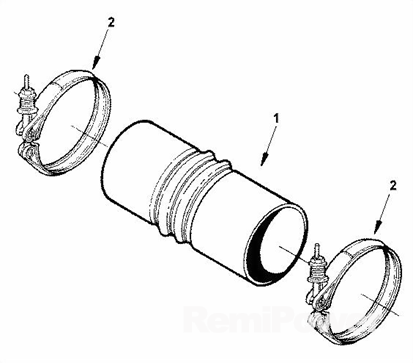

IC 9376 | HOSE,AIR INTAKE | 1 | ||
1 | C3071049 | HOSE,HUMP | 4 | |
2 | C3415597 | CLAMP,SPRING HOSE | 8 | |

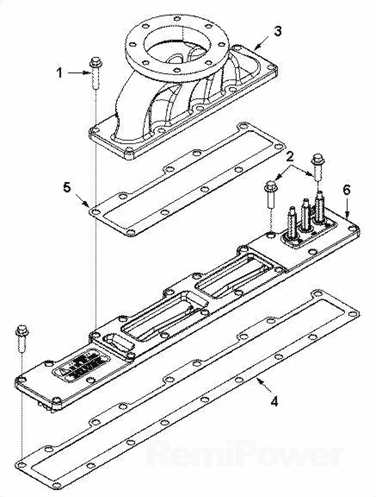

IM 9101 | MANIFOLD,AIR INTAKE | 1 | ||
1 | C3900678 | SCREW,HEX FLANGE HEAD | 10 | |
2 | C3902114 | SCREW,HEX FLANGE HEAD CA | 3 | |
3 | C3943613 | CONNECTION,AIR INTAKE | 1 | |
4 | C3944646 | GASKET,INT MANIFOLD COVE | 1 | |
5 | C3992090 | GASKET,CONNECTION | 1 | |
6 | C4940600 | HEATING,INTAKE AIR | 1 | |

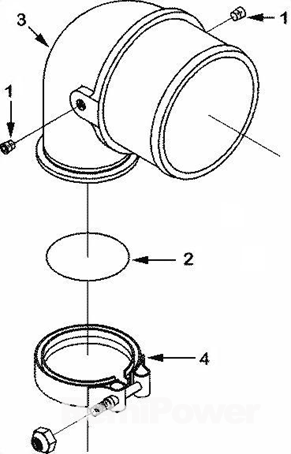

IT 9043 | CONNECTION,AIR TRANSFER | 1 | ||
1 | C3008465 | PLUG, PIPE | 2 | |
2 | C3883284 | SEAL,O RING | 1 | |
3 | C3883977 | PIPE,AIR TRANSFER | 1 | |
4 | C3972681 | CLAMP,V BAND | 1 | |

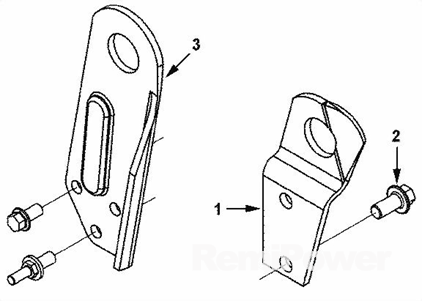

LA 9074 | ARRANGEMENT,LIFTING | 1 | ||
1 | C4935680 | BRACKET,LIFTING | 1 | |
2 | C4940240 | SCREW,HEX FLANGE HEAD | 2 | |
3 | C4983728 | BRACKET,LIFTING | 1 | |
LA 9128 | MOUNTING,LIFTING BRACKET | 1 | ||
1 | C3903990 | SCREW,HEX FLANGE HEAD | 2 | |
2 | C4078617 | SCREW,HEX FLANGE HEAD CA | 1 | |

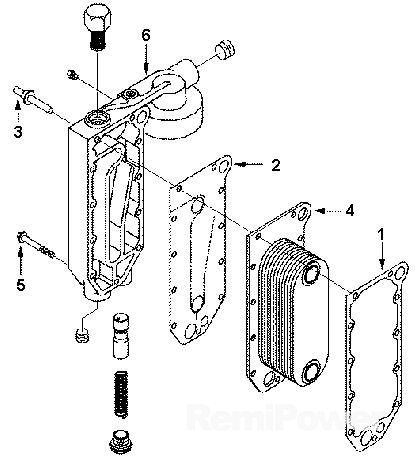

LC 9765 | COOLER,ENGINE OIL | 1 | ||
1 | C3918174 | GASKET,OIL COOLER CORE | 1 | |
2 | C3929011 | GASKET,LUB OIL CLR COV | 1 | |
3 | C3944874 | SCREW,HEX FLANGE HEAD | 3 | |
4 | C3966365 | CORE,COOLER | 1 | |
5 | C3966976 | SCREW,HEX FLANGE HEAD | 8 | |
6 | C4936582 | HEAD.LUB OIL FILTER | 1 | |

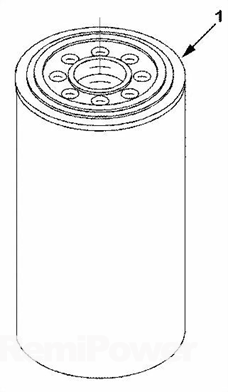

LF 9130 | FILTERMLUBRICATING OIL | 1 | ||
1 | C3401544 | ELEMENT,LUB OIL FILTER | 1 | |

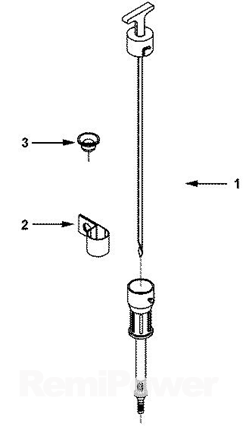

LG 9900 | GAUGE,OIL LEVEL | 1 | ||
1 | 3939181 | DIPSTICK | 1 | |
2 | C202888 | CLIP | 1 | |
3 | C3943808 | PLUG,EXPANSION | 1 | |
LO 9701 | OIL,ENGINE | 1 | ||
1 | C4983154 | TAG | 1 | |
2 | C4983155 | TAG | 1 | |

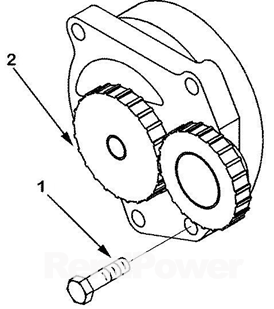

LP 9724 | PUMP,LUBRICATING OIL | 1 | ||
1 | C3900677 | SCREW,HEXAGON HEAD CAP | 4 | |
2 | C4941464 | PUMP,LUBRICATING OIL | 1 | |

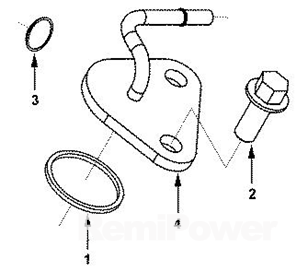

OB 9363 | COVER,CYLINDER BLOCK | 1 | ||
1 | C3906696 | SEAL,RECTANGULAR RING | 1 | |
2 | C3910495 | SCREW,HEX FLANGE HEAD CA | 2 | |
3 | C3920706 | PLUG,EXPANSION | 1 | |
4 | C3964393 | CONNECTION,OIL DRAIN | 1 | |
OB 9377 | ARRANGEMENT,OIL FILL | 1 | ||
1 | C3901895 | CAP,FILLER | 1 | |
2 | C3903475 | SEAL,RECTANGLE | 1 | |
3 | C3905401 | PLUG,EXPANSION | 1 | |
4 | C3921644 | CONNECTION,OIL FILLER | 1 | |
5 | C3936876 | SEAL,RECTANGULAR RING | 1 | |

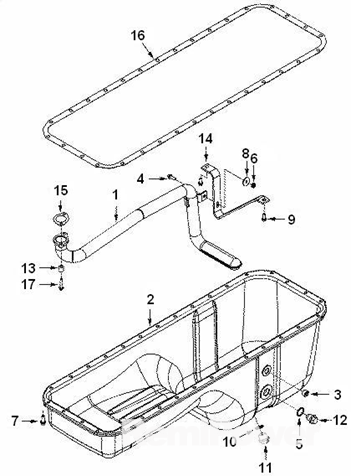

OP 9338 | PAN,OIL | 1 | ||
1 | 3964028 | CONNECTION,OIL SUCTION | 1 | |
2 | 3974294 | PAN,OIL | 1 | |
3 | C3013786 | PLUG,PIPE | 1 | |
4 | C3901865 | SCREW,HEX FLANGE HEAD CA | 1 | |
5 | C3902425 | SEALING WASHER | 1 | |
6 | C3906216 | NUT,HEXAGON FLANGE | 1 | |
7 | C3907860 | SCREW,HEX FLANGE HEAD CA | 32 | |
8 | C3910960 | PLAIN WASHER | 1 | |
9 | C3913638 | SCREW,HEX FLANGE HEAD CA | 2 | |
10 | C3920773 | WASHER,SEALING | 1 | |
11 | C3924147 | PLUG,THREADED | 1 | |
12 | C3924148 | PLUG,THREADED | 1 | |
13 | C3926865 | SPACER,MOUNTING | 2 | |
14 | C3927611 | BRACE,TUBE | 1 | |
15 | C3939352 | GASKET,OIL SUC CONNECT | 1 | |
16 | C3973509 | GASKET,OIL PAN | 1 | |
17 | Q1840630 | SCREW,HEX FLANGE HEAD | 2 | |

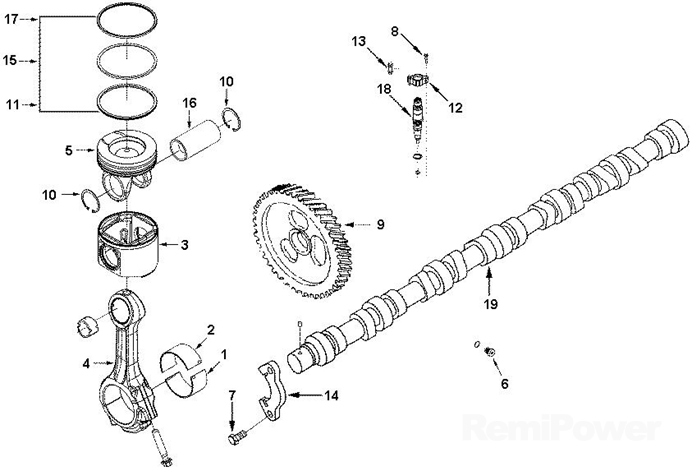

PP43079 | PERFORMANCE PARTS | 1 | ||
1 | 3950661 | BEARING,CONNECTING ROD | 6 | |
2 | 3966244 | BEARING,CONNECTING ROD | 6 | |
3 | 3966721 | SKIRT,PISTON | 6 | |
4 | 3979744 | ROD,ENGINE CONNECTING | 6 | |
5 | 4941395 | TOP,PISTON | 6 | |
6 | C3678923 | PLUG,THREADED | 1 | |
7 | C3900227 | SCREW,HEXGON HEAD CAP | 2 | |
8 | C3902023 | SCREW,HEX FLANGE HEAD | 6 | |
9 | C3918777 | GEAR,CAMSHAFT | 1 | |
10 | C3920692 | RING,RETAINING | 12 | |
11 | C3921919 | RING,OIL PISTON | 6 | |
12 | C3940639 | CLAMP,INJECTOR | 6 | |
13 | C3940817 | SCREW,HEX FLANGE HEAD CA | 6 | |
14 | C3944001 | SUPPORT,CAMSHAFT THRUST | 1 | |
15 | C3948412 | RING,COMPRESION PISTON | 6 | |
16 | C3950549 | PIN,PISTON | 6 | |
17 | C3964073 | RING,COMPRESSION PISTON | 6 | |
18 | C3975929 | INJECTOR | 6 | |
19 | C3976620 | CAMSHAFT | 1 | |

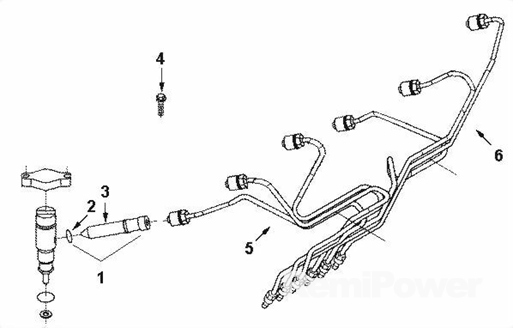

PP98698 | PLUMBING,INJECTOR | 1 | ||
1 | 3936953 | CONNECTOR,MALE | 6 | |
2 | C3882589 | SEAL,O RING | 1 | |
3 | C4931173 | CONNECTOR,MALE | 1 | |
4 | C3902114 | SCREW,HEX FLANGE HEAD CA | 1 | |
5 | C3976433 | TUBE,INJECTOR FUEL SUPP | 1 | |
6 | C3976434 | TUBE,INJECTOR FUEL SUPP | 1 | |

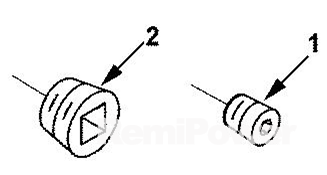

PP98995 | PLUMBING,CYLINDER HEAD | 1 | ||
1 | C3008468 | PLUG,PIPE | 6 | |
2 | C3008469 | PLUG,PIPE | 1 | |

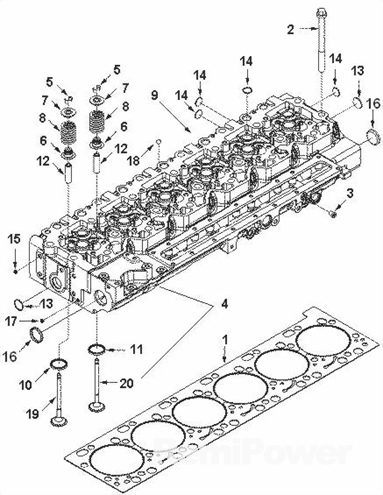

PP99187 | HEAD,CYLINDER | 1 | ||
1 | 3967059 | GASKET,CYLINDER | 1 | |
2 | C3960043 | SCREW,HEX FLANGE HEAD | 26 | |
3 | C3977851 | PLUG,THREADED | 1 | |
4 | C4936714 | HEAD, CYLINDER | 1 | |
5 | 3900250 | COLLET,VALVE | 48 | |
6 | 3948578 | SEAL,VALVE STEM | 24 | |
7 | C3944452 | RETAINER,VALVE SPRING | 24 | |
8 | C3944711 | SPRING,VALVE | 24 | |
9 | C4929518 | HEAD,CYLINDER | 1 | |
10 | 3940152 | INSERT,VALVE | 12 | |
11 | 3968074 | INSERT,VALVE | 12 | |
12 | 4934063 | GUIDE,VALVE STEM | 24 | |
13 | C3032693 | PLUG,EXPANSION | 2 | |
14 | C3920706 | PLUG,EXPANSION | 18 | |
15 | C3945093 | PLUG,EXPANSION | 1 | |
16 | C3945094 | PLUG,EXPANSION | 2 | |
17 | C3945095 | PLUG,EXPANSION | 6 | |
18 | C3945097 | PLUG,EXPANSION | 1 | |
19 | D3942588 | VALVE,INTAKE | 12 | |
20 | D3942589 | VALVE,EXHAUST | 12 | |
PP99358 | TURBOCHARGER | 1 | ||
1 | C3818823 | STUD | 4 | |
2 | C3818824 | NUT,HEXAGON FLANGE | 4 | |
3 | C3901356 | GASKET,TURBOCHARGER | 1 | |
4 | C4047354 | TURBOCHARGER | 1 | |
RA 9077 | RADIATOR | 1 | ||
1 | C3415558 | CLAMP,HOSE | 1 | |
2 | C3924701 | HOSE,ELBOW | 1 | |

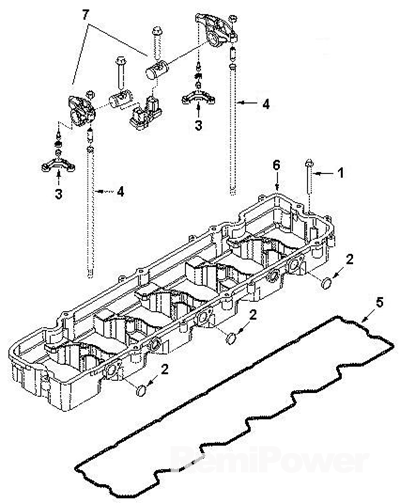

RL 9783 | LEVER,ROCKER | 1 | ||
1 | C3901447 | SCREW, HEX FLANGE HEAD | 7 | |
2 | C3920706 | PLUG,EXPANSION | 3 | |
3 | C3943445 | CROSSHEAD,VALVE | 12 | |
4 | C3964715 | ROD,PUSH | 12 | |
5 | C3966708 | GASKET,RKR LEVER HOUSING | 1 | |
6 | C3967265 | HOUSING,ROCKER LEVER | 1 | |
7 | C3972540 | ASSY,ROCKER LEVER | 6 | |
RP 9042 | VENT,ENGINE CONNECTION | 1 | ||
1 | C3943670 | FITTING,ORIFICE | 1 | |
SD 9113 | SWITCH,COO TEMPERATURE | 1 | ||
1 | C3979176 | SENSOR,TEMPERATURE | 1 | |
SD 9169 | SENSOR,OIL PRESSURE | 1 | ||
1 | C3678912 | SEAL,O RING | 1 | |
2 | C4931169 | SENSOR,OIL PRESSURE | 1 | |
SM 9104 | MOUNTING,STARTING MOTOR | 1 | ||
1 | C3968466 | SCREW,TWELVE POINT | 3 | |
SP 9082 | SPACER,FAN PILOT | 1 | ||
1 | C3910130 | SPACER,FAN | 1 | |
SS 9455 | PAINT | 1 | ||
1 | C3991084 | NAMEPLATE | 1 | |

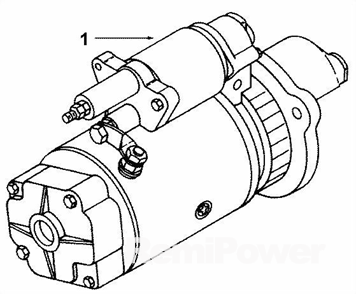

ST 9357 | MOTOR,STARTING | 1 | ||
1 | C3415537 | MOTOR,STARTING | 1 | |

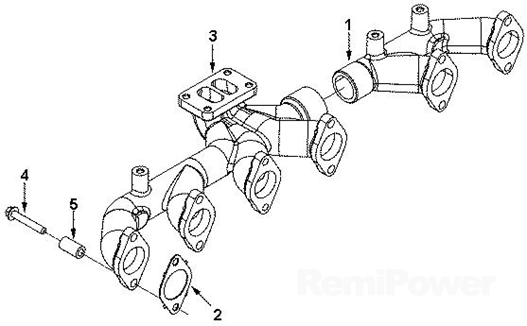

TB91583 | ARRANGEMENT,TURBOCHARGER | 1 | ||
1 | C3937477 | MANIFOLD,EXHAUST | 1 | |
2 | C3937479 | GASKET,EXHAUST MANIFOLD | 6 | |
3 | C3943841 | MANIFOLD,EXHAUST | 1 | |
4 | C3944593 | SCREW,HEX FLANGE HEAD | 12 | |
5 | C3945252 | SPACER,MOUNTING | 12 | |
TK 9022 | COOLER,TOR CONVERTER | 1 | ||
1 | C3089238 | PLUG,THREADED | 2 | |
2 | C3089239 | PLUG,THREADED | 1 | |
3 | C3089240 | SEAL ,O RING | 1 | |
TO L006 | TOOL,SERVICE | 1 | ||
1 | L00394 | TOOL, SERVICE | 1 | |
2 | L00402 | BAG,SERVICE TOOL | 1 | |

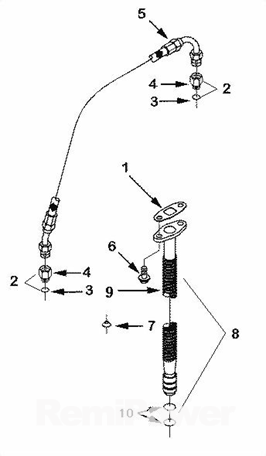

TP97293 | PLUMBING,TURBOCHARGER | 1 | ||
1 | C3285747 | GASKET,OIL DRAIN | 1 | |
2 | C3415347 | CONNECTOR,FEMALE | 2 | |
3 | C3037236 | SEAL,O RING | 1 | |
4 | C3415328 | CONNECTOR,FEMALE | 1 | |
5 | C3415471 | HOSE,FLEXIBLE | 1 | |
6 | C3900630 | Screw,Hex flange headcap | 2 | |
7 | C3924389 | WASHER,SEALING | 2 | |
8 | C3928629 | CONNECTION,TUR OIL | 1 | |
9 | C3926842 | CONNECTION,TUBE OIL | 1 | |
10 | C3928624 | SEAL,O RING | 2 | |

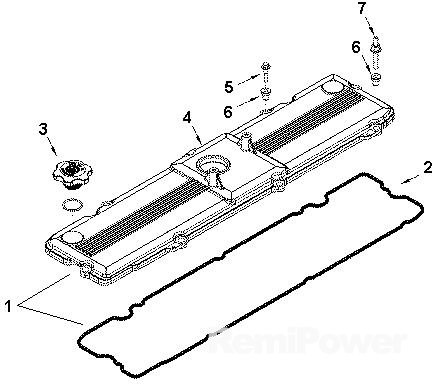

VC 9775 | COVER,VALVE | 1 | ||
1 | 3967763 | COVER,VALVE | 1 | |
2 | C3959798 | GASKET,VALVE COVER | 1 | |
3 | C3968202 | CAP,FILLER | 1 | |
4 | C3970866 | COVER,VALVE | 1 | |
5 | C3900632 | SCREW,HEX FLANGE HEAD | 7 | |
6 | C3959799 | ISOLATOR,VIBRATION | 8 | |
7 | C3999620 | SCREW,HEX FLANGE HEAD CA | 1 | |

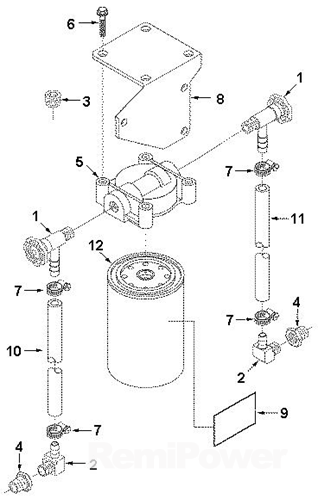

WF 9094 | LOCATION,CRN RESISTOR | 1 | ||
1 | C179901 | VALVE,SHUTOFF | 2 | |
2 | C179903 | COUPLING,ELBOW HOSE | 2 | |
3 | C3008469 | PLUG,PIPE | 2 | |
4 | C3415608 | BUSHING,REDUCING PIPE | 2 | |
5 | C3415680 | HEAD,CORROSION RESISTOR | 1 | |
6 | C3903112 | SCREW,HEX FLANGE HEAD CA | 4 | |
7 | C3910509 | CLAMP,HOSE | 4 | |
8 | C3966481 | SUPPORT,FILTER | 1 | |
9 | C3973898 | DECAL | 1 | |
10 | C3975596 | HOSE,PLAIN | 1 | |
11 | C3975597 | HOSE,PLAIN | 1 | |
12 | C4058964 | RESISTOR,CORROSION | 1 | |
WI 9145 | CONNECTION,WATER INLE | 1 | ||
1 | C3415658 | GASKET,CONNECTION | 1 | |
2 | C3900630 | SCREW,HEX FLANGE HEADCAP | 2 | |
3 | C3944720 | CONNECTOR,WATER INLET | 1 | |
WO 9052 | CONNECTION,WATER OUTL | 1 | ||
1 | C3900631 | SCREW,HEX FLANGE HEAD | 2 | |
2 | C3944429 | CONNECTOR,WATER OUTLE | 1 | |

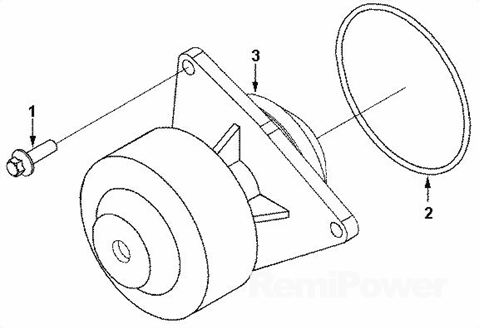

WP 9101 | PUMP,WATER | 1 | ||
1 | C3093730 | SCREW,HEX FLANGE HEAD | 3 | |
2 | C3940386 | SEAL,O RING | 1 | |
3 | C4934058 | PUMP,WATER | 1 | |

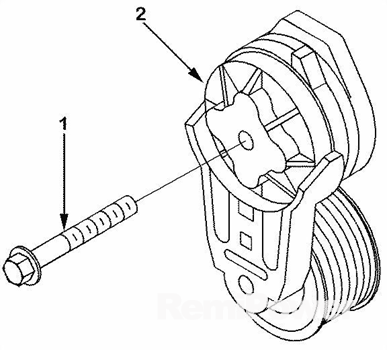

WP 9916 | TENSIONER,BELT | 1 | ||
1 | C3282433 | SCREW,HEX FLANGE HEAD | 1 | |
2 | C3976831 | TENSIONER,BELT | 1 | |

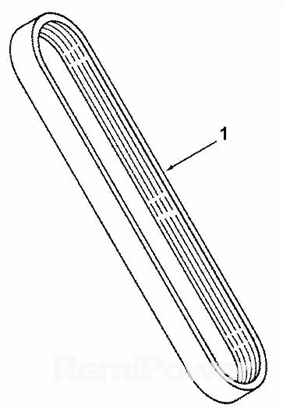

WP 9963 | PULLEY,WATER PUMP DRI | 1 | ||
1 | C3911620 | BELT,V RIBBED | 1 | |
1 | C3008466 | PLUG ,PIPE | 1 | |
2 | C3415546 | CLAMP,V BAND | 1 | |
3 | C3902460 | SCREW,HEX FLANGE HEAD | 4 | |
4 | C3910994 | PIPE,EXHAUST OUTLET | 1 | |
5 | C3917923 | SUPPORT,MOUNTING | 1 | |
3916302 | SWITCH,MAGNETIC | 1 | ||
C3068915 | BRACKET,MAGNETIC SWIT | 1 |
