Cummins K19/KT19/KTA19-M Engine spare parts catalog

CCEC Cummins K19-M/KT19-M/KTA19-M/KTA19-M2/KTA19-M3/KTA19-M4 parts,Main Engine(ME) Spare parts supply for Engine Overhual(Engine OH) marine ,Engineering,Generator oil& industry.. Chongqing Cummins original parts are available for KTA19-C/KTA19-G/KTA19-M/KTA19-DM/KTA19-D(M) series Final parts list depends on each engine's Serial Number ,SO number or Nameplate,pls contact our Sales Team.
Enquiry

Cummins KTA19-M Diesel Engine List

No. Description Part No. Qty. No. Description Part No. Qty.
1 Piston 3096680 6 set 25 Valve, Spring(short) 3633840 24 pc
2 Piston 3096681 6 set 26 Head, Cylinder M500 3021692 6 pc
3 Piston 3096682 6 pc 27 Head, Cylinder G3-G4 3811985 6 pc
4 Piston 3096683 6 pc 28 Gasket, Cylinder Head 3166289 6 pc
5 Piston 3096685 6 pc 29 Injector M470/500 3022197 6 pc
6 Piston 3070707 6 pc 30 Injector G1/2 3016676 6 pc
7 Pin, Piston 205200 6 pc 31 Injector G 3016675 6 pc

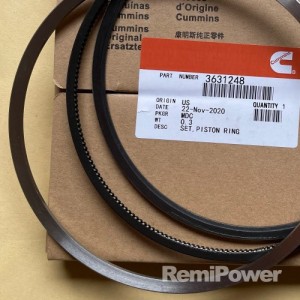

8 Ring, Piston 4089500 6 set 32 Injector M600 3087587 6 pc

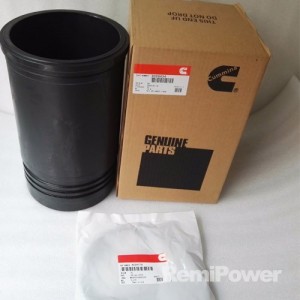

9 Liner, Cylinder 4009220 6 pc 33 Injector G3-G4 3095773 1 pc
10 Bearing, Main +0.00 AR12270 1 set 34 Turbocharger M500 3594027 1 pc
11 Bearing, Main +0.25 AR12271 1 set 35 Turbocharger M600/640 3537685 1 pc
12 Bearing, Main +0.50 AR12272 1 set 36 Turbocharger G4 3594134 1 pc
13 Bearing, Con Rod +0.00 205840 1 set 37 Turbocharger G3 3094131 1 pc
14 Bearing, Con Rod +0.25 205841 1 set 38 Water Pump 3098960 1 pc
15 Bearing, Con Rod +0.50 205842 1 set 39 Set, Upper Engine Gasket 3803598 1 pc
16 Rod, Engine Connecting 3811995 6 pc 40 Set, Lower Engine Gasket 3801007 1 pc
17 Rod, Push 205492 12 pc 41 Core, Aftercooler 3331668 2 pc
18 Rod, Push 3017961 6 pc 42 Core, Aftercooler 3001299 1 pc
19 Lub Oil Pump 3047549 1 set 43 Guide, Valve Stem 3202210 24 pc
20 Valve, Intake 207241 12 pc 44 Seal, Liner Cylinder AR70577 6 pc
21 Valve, Exhaust 3035110 12 pc 45 Seal Oil Support   1
22 Valve Spring(long) 205208 24 pc 46 Seal, Oil   1
23 Valve, Intake 3052820 12 pc 47 Seal, Oil   1
24 Valve, Exhaust 3088389 12 pc
