Cummins N14L/N855/NT855/NTA855-G Engine Spare Parts Catalog

CCEC Cummins NTA855-G/NTA855-G1B/NTA855-G2/NTA855-G3/NTA855-G4/NTAA855-G7 Spares,Generator Engine(GE) Spare parts supply for Engine Chongqing Cummins original parts are available for NTA855-C/ NTA855-G/ NTA855-M/ NTA855-DM/ NTA855-D(M) series Final parts list depends on each engine's Serial Number ,SO number or Nameplate,pls contact our Sales Team.
Enquiry

Cummins NTA855-G Generator Diesel Engine List

ITEM PARTS NAME QTY P/N.
1 CLEANER,AIR 1 300958
2 CORROSION RESISTOR 1 4058965

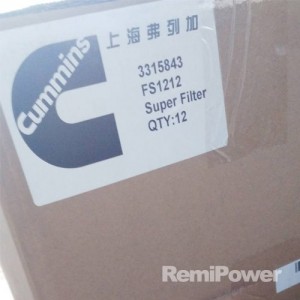

3 FILTER,FUEL 2 3315843
4 CARTRIDGE,LUB 1 3401544
5 CORE,COOLER 1 3053393
6 PICK UP,MAGNETIC 1 3034572
7 THERMOSTAT 1 3076489-20
8 BELT,V RIBBED 1 3040386
9 BELT,V RIBBED 1 217638
10 TURBOCHARGER 1 3529035
11 BEARING,THRUST 4 3067568
12 BEARING,CONNECTING ROD 6 214950-20
13 MAIN BEARING STD 1 3801260-10
14 VALVE,INTAKE 12 135957-20
15 VALVE,EXHAUST 12 145701-20
16 INSERT,INTAKE VALVE 12 3017759-20
17 INSERT,VALVE EXHAUST 12 200354-20
18 RETAINER, VALVE SPRING 24 3036966-20
19 GUIDE, VALVE SPRING 24 3047395
20 GUIDE,VALVE STEM 24 3006456-20
21 SPRING,VALVE 24 3081212
22 COLLET,VALVE 24 127554
23 INJECTOR 6 4914328
24 ROD,PUSH 6 3046430
25 ROD,PUSH 6 3046420
26 LINER KIT,CYLINDER 6 3801826-20
27 GASKET,CYLINDER HEAD 6 4058790

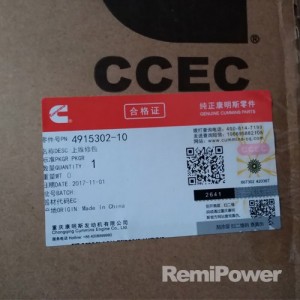

28 SET,UPPER ENGINE GSK 1 4915302-10
29 SET,LOWER ENGINE GSK 1 4915303-10
30 CONNECTING ROD ASSY 6 3013930
31 BUSHING 1 187420-20
32 BUSHING 1 3801106
33 RING,RETAINIGN 6 175755-20
34 PISTON,ENGINE 6 4913782
35 PIN,PISTON 6 191970-20
36 SET,PISTON RING 6 3103157/58/59
37 NOZZLE,PISTON COOLING 6 3013591-20
38 CAMSHAFT 1 3090874
39 PUMP,LUBRICATING OIL 1 3821579
40 MOTOR,STARTING 1 3021036
41 SWITCH,MAGNETIC 1 3050692
