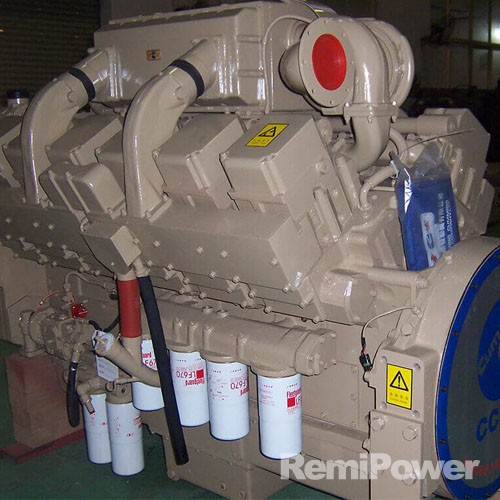

KTA38-C

Cummins KTA38-C Engineering diesel engine,Original from Chongqing Cummins Engine Plant (CCEC). Cummins KT38-C925,KTA38-C1050,KTA38-C1100,KTA38-C1200,KT38-P700,KTA38-P900,KTA38-P980,KTA38-P1100,KTA38-P1200,KTA38-P1300,KTA38-P1400 widely use on Heavy truck, Excavator, Road roller, Bulldozer, Crane, water pump Available for Cummins KTA38-C genuine engine spare parts.
Enquiry

Cummins KT38-C925

Cummins  KT38-C925 Construction Engine Specifications
Engine Model  KT38-C925
Rated Power  690 kW/925 HP
Rated Speed 2100RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  4095 N.m @ 1300 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  Cummins PT Pump
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm
Cummins diesel engine  KT38-C925 trade information
Warranty Time 1 year or 1000 hours, which one comes first
Delivery Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF
Payement termes  T/T, L/C



Cummins KTA38-C1050

Cummins  KTA38-C1050 Construction Engine Specifications
Engine Model KTA38-C1050
Rated Power  783 kW/1050 HP
Rated Speed 2100RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  4068 N.m @ 1500 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  Cummins PT Pump
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm





Cummins KTA38-C1100



Cummins KTA38-C1100 Construction Engine Specifications
Engine Model KTA38-C1100
Rated Power 821 kW/1100HP
Rated Speed 1800RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque 4702 N.m @ 1500 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  Cummins PT Pump
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm



Cummins KTA38-C1200

Cummins KTA38-C1200 Construction Engine Specifications
Engine Model KTA38-C1200
Rated Power  896 kW/1200 HP
Rated Speed 2100RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  4747 N.m @1800 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  Cummins PT Pump
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm



Cummins KT38-P700

Cummins KT38-P700 Construction Engine Specifications
Engine Model KT38-P700
Rated Power  515 kW/700 HP
Rated Speed 1500RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  2967 N.m @ 1500 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  PT Pump-STC
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm



Cummins KTA38-P900

Cummins KTA38-P900 Construction Engine Specifications
Engine Model KTA38-P900
Rated Power  671kW/900 HP
Rated Speed 1500RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  3847 N.m @1500 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  PT Pump-STC
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm





Cummins KTA38-P980

Cummins KTA38-P980 Construction Engine Specifications
Engine Model KTA38-P980
Rated Power  731kW/980 HP
Rated Speed 1500RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  3947 N.m @1500 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  PT Pump-STC
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm



Cummins KTA38-P1100

Cummins KTA38-P1100 Construction Engine Specifications
Engine Model KTA38-P1100
Rated Power  821kW/1100 HP
Rated Speed 1500RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  4354 N.m @1800 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  PT Pump-STC
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm


Cummins KTA38-P1200


Cummins KTA38-P1200 Construction Engine Specifications
Engine Model KTA38-P1200
Rated Power  896kW/1200 HP
Rated Speed 1800RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  4747 N.m @1800 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  PT Pump-STC
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm



Cummins KTA38-P1300

Cummins KTA38-P1300 Construction Engine Specifications
Engine Model KTA38-P1300
Rated Power  970kW/1300 HP
Rated Speed 1500RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  6174 N.m @1500 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  PT Pump-STC
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm


Cummins KTA38-P1400


Cummins KTA38-P1400 Construction Engine Specifications
Engine Model KTA38-P1300
Rated Power  970kW/1300 HP
Rated Speed 1500RPM
Engine Type  12 Cylinders, V Type
Bore*Stroke(mm)  159mm*159mm
Displacement 38 L
Compression Ratio  13.9 : 1
Peak Torque  6174 N.m @1500 rpm
Fuel Consumption  214 g/Kw.h
Aspiration Type Turbocharged
Cooling Method Intercooled
Start Type 24V, Electric Start
Fuel System  PT Pump-STC
Packing Weight  3719Kg
Dimension 2151mm*966mm*1704mm
Cummins diesel engine KTA38-P1300 trade information
Warranty Time 1 year or 1000 hours, which one comes first
Delivery Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF
Payement termes  T/T, L/C
