Cummins QSK50 Genuine Spare Parts Catalog

‹ ›

Cummins QSK50 Genuine Spare Parts Catalog

All our QSK50/QSK50-M/QSK50-DM/QSK50-G genuine parts .In this page you could find out the Cummins QSK50 engine's Main overhaul Parts, the usual parts numbers of the parts for Cylinder Block,Cylinder head,Fuel System, Lub Oil System, Turbocharger, Gasket kit. Or Be sure to give us Cummins engine series number, so that we can check the correct spare part number and correct price. In demanding mining applications such as excavators, haul trucks, and wheel loaders, dependability is everything.

Enquiry

Cummins QSK50 Genuine Spare Parts Catalog

Item	Part-Number	Description	Quantity
1	4955328	Kit Cylinder Liner	16
2	4099041	Piston Cooling Valve	8
3	3177443	Hexagon Flange Head Cap Screw	1
4	3177945	Fracture Resistant Screw	2
5	3630839	Rocker Lever Housing Gasket	16
6	208084	Rivet	32
7	3053476	Selector lever	5
8	4098943	Selector lever	5
9	3086362	Valve Crosshead	32
10	207344	bushing	32
11	3175856	Hand Hole Gasket	8
12	3628902	Plain Washer	48
13	3016792	Oil Seal	1
14	3177160	Gear Cover Gasket	1

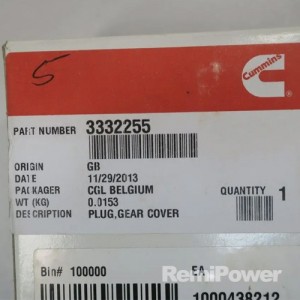

15	3332255	Gear Cover Plug	1
16	3632411RX	connecting rods	16
17	3047390	Connecting Rod Bearing STANDER	32
18	4955325	Engine Piston Kit	16
19	4090028	Piston Ring Set	16
20	219153	Fracture Resistant Screw	16
21	205126	Plain Washer	16
22	3018210	Main Bearing Kit STANDER	1
23	3634664	Cylinder Head Gasket	16
24	4313887RX	cylinder head
25	4956518	Exhaust Manifold Gasket	16
26	4978357	O-Ring Seal	32
27	4978358	O-Ring Seal	32
28	4326919	TEMPERATURE SENSOR	2
29	3866545	EXHAUST OUTLET CONNECTION GASKET	2
30	3897565	HEXAGONAL HEAD SCREW	24
31	3897566	HEXAGONAL FLANGE NUT	24
32	4968760	EXHAUST CONNECTION GASKET	2
33	S 302	Plain Woodruff Key	2
34	3007971	Camshaft Thrust Bearing	1
35	3040722	Camshaft Cover Gasket	2
36	3040721	Cam Follower Housing Gasket	16
37	3016826	Cam Follower Roller	32
38	4009248	Cam Follower Roller Pin	32
39	205438	Tappet Roller Pin Lockwire	32
40	213559	Cam Follower Socket	32
41	4924739RX	RECON lubricating oil pump	1
42	3000632	Connection Gasket	1
43	3026392	Rectangular Ring Seal	2
44	4924730	Pressure Relief Valve	1
45	3648607	Cover Plate Gasket	2
46	S 604	Lock Washer	12
47	3031544	Rectangular Ring Seal	1
48	3043213	Oil Pan Gasket	1
49	3043211	Oil Pan Gasket	2
50	3043214	Oil Pan Gasket	1
51	206416	Support Gasket	1
52	206455	Water Pump Gasket	1
53	WF2075	Corrosion Resistor	2
54	145528	O-Ring Seal	2
55	3037537	O-Ring Seal	2
56	3922794	O-Ring Seal	2
57	70415	O-Ring Seal	1
58	3818885	O-Ring Seal	6
59	S 604	Lock Washer	6
60	3082132	Cover Plate Gasket	1
61	3348906	Glove	2
62	3975774	O-Ring Seal	2
63	2862844	Sea Water Pump	1
64	3085709	O-Ring Seal	1
65	3046943	O-Ring Seal	1
66	3085709	O-Ring Seal	1
67	2871231	Sea Water Pump Tube	1
68	206808	Grommet Seal	8
69	2881604	Intake Manifold Gasket	4
70	3035026	O-Ring Seal	8
71	3037537	O-Ring Seal	1
72	3082358	O-Ring Seal	4
73	3171287	Connection Gasket	8
74	3645972	Hose Clamp	8
75	3645975	Hose Clamp	4
76	4008037	T-Bolt Clamp	4
77	4065349	Exhaust Outlet Connection Gasket	4
78	4080573	Aftercooler Cover Gasket	4
79	4927451	Connection Gasket	2
80	4964485	Connection Gasket	2
81	S 119	Hexagon Head Cap Screw	16
82	3644834	Connection, Water Transfer	4
83	4969456	Hump Hose	2
84	AF4553M	Air Cleaner Element	2
85	204557	T-Bolt Clamp	2
86	3627145	Hump Hose	2
87	3627206	T-Bolt Clamp	4
88	3641462	T-Bolt Clamp	2
89	3946326S	Restriction Indicator	2
90	3628895	Oil Seal	1
91	3076346	Wear Sleeve	1
92	3200287	Keyway Seal	1
93	3628894	Dust Seal	1
94	5412990	V Ribbed Belt	1
