Cummins 6BTA5.9 Genuine Spare Parts

‹ ›

Cummins 6BTA5.9 Genuine Spare Parts

Cummins 6B5.9L spare parts produced by Dongfeng Cummins(DCEC) are mainly our scope of supply, which from perfomance parts as Cylinder Head Assy, Valve, Cylinder Bock, Piton and Con Rod, Crankshaft, Camshaft, Pumps, Alternator, Motor etc. to accessories parts like belt, gaskets, seals, tubes, Fleetguard filters and repair kit for Cummins 6BTA5.9-C/6BTA5.9-G/6BTA5.9-GM/M mechanical Series. With part number you can check the price directly in the web, if not, please contact our sales for further help.

Enquiry

Cummins 6BTA5.9 Genuine Spare Parts

Part NO.	Part Name	QTY	Part NO.	Part Name	QTY
AC 9185ZZ	CLEANER,AIR	1	FW90104ZZ	FYYWHEEL	1
C3902662	NUT,HEXAGON FLANGE	2	C3900269	WASHER,PLAIN	4
C3903990	SCREW,HEX FLANGE HEAD	2	C3900269	WASHER.PLAIN	4
C3910495	SCREW,HEX FLANGE HEAD CA	2	C3901395	SCREW,HEXAGON HEAD CAP	4
C3970588	CLEANER,AIR	1	C3901395	SCREW,HEXAGON HEAD CAP	4
C3976063	BRACKET,AIR CLEANER	1	C4939064	FLYWHEEL	1
C4932594	BRACE,CONNECTION	1	LA 9007ZZ	BRACKET,LIFTING	1
AP 9786ZZ	APPROVAL,AGENCY	1	C3908118	BRACKET,LIFTING	1
C4928977	SCREW,DRIVE	2	C3910495	SCREW,HEX FLANGE HEAD CA	2
C4992260	DATAPLATE	1	LB 9101ZZ	LABELING ENGINE	1
bp 9072zz	BLOCK,ENGINE	1	C3974406	TAG,IDENTIFICATI	1
3927772	BEARING,CRANKSHAFT THRUS	1	C3975443	COVER,PROTECTIVE	1
3937214	NOZZLE,PISTON COOLING	6	C4983154	TAG	1
C3008468	PLUG,PIPE	1	C4983155	DECAL	1
C3900068	DOWEL,RING	2	LC 9020ZZ	COOLER,ENGINE OIL	1
C3900257	DOWEL, PIN	2	C3900632	SCREW,HEX FLANGE HEAD	14
C3900687	PLUG,EXPANSION	1	C3906619	PLUG, PIPE	1
C3900956	PLUG,EXPANSION	3	C3937743	CARTRIDGE,LUB OIL FILTER	1
C3901306	BUSHING	1	C3942915	GASKET,FILTER HEAD	1
C3902343	DOWEL,RING	2	C3957544	CORE,COOLER	1

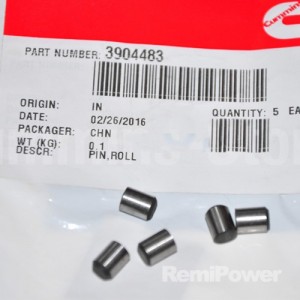

C3904483	DOWEL, PIN	1	C4932124	GASKET,OIL COOLER CORE	1
C3906619	PLUG, PIPE	1	C4934217	HEAD,LUB OIL FILTER	1
C3906619	PLUG, PIPE	1	LG90273ZZ	GAUGE,OIL LEVEL	1
C3928797	BLOCK,CYLINDER	1	C3900955	PLUG,EXPANSION	2
C3007635	PLUG,EXPANSION	5	C4941539	DIPSTICK	1
C3900956	PLUG,EXPANSION	3	C4941540	TUBE,OIL GAUGE	1
C3900965	PLUG,EXPANSION	4	LP 9064ZZ	PUMP,LUBRICATING OIL	1
C3904217	SCREW,HEXAGON HEAD CAP	14	C3900677	SCREW,HEXAGON HEAD CAP	4
C3913917	CAP,MAIN BEARING	7	C4935792	PUMP,LUBRICATING OIL	1
C3929016	BEARING,MAIN	6	OB 9005ZZ	COVER,CYLINDER BLOCK	1
C3929021	BEARING,CRANKSHAFT THRUS	7	C101322	CAP,FILLER	1
C3929027	GEAR,CRANKSHAFT	1	C3901249	SCREW,HEX FLANGE HEAD	2
C3929037	CRANKSHAFT,ENGINE	1	C3905440	TUBE,OIL FILLER	1
BP 9098ZZ	COVER,FRONT GEAR	1	C3906696	SEAL,RECTANGULAR RING	1
A3918674ZZ	COVER,GEAR	1	OP 9006ZZ	PAN,OIL	1
C4991279	COVER,GEAR	1	C3900630	SCREW,HEX FLANGE HEADCAP	2
C4991305	SEAL,OIL	1	C3902425	SEALING WASHER	1
C3900629	SCREW,HEX FLANGE HEAD	5	C3915703	PAN,OIL	1
C3900629	SCREW,HEX FLANGE HEAD	11	C3920773	WASHER,SEALING	1
C3900633	SCREW,HEX FLANGE HEAD	2	C3921992	CONNECTION,OIL SUCTION	1
C3900633	SCREW,HEX FLANGE HEAD	9	C3924147	PLUG，THREADED	1
C3903463	COVER，ACCESS HOLE	1	C3924148	PLUG，THREADED	1
C3903475	SEAL，RECTANGLE	1	C3938157	GASKET,FALNGE	1
C3907998	SCREW,ROUND HEAD CAP	2	OP 9702ZZ	MOUNTING,OIL PAN	1
C3913995ZZ	HOUSING,TIMING PIN	1	C3900630	SCREW,HEX FLANG HEADCAP	2
C3903924	PIN,TIMING	1	C3920400	SCREW,HEX FLANGE HEAD CA	36
C3904849	RING,RETAINING	1	C3959052	GASKET,OIL PAN	1
C3913994	SEAL，O RING	1	PP L008ZZ	TURBOCHARGER	1
C3919683	HOUSING,TIMING PIN	1	C3818823	STUD	4
C3915772	SEAL，RECTANGLE	1	C3818824	NUT,HEXAGON FLANGE	4
C3918673	GASKET,GEAR COVER	1	C3919369	GASKET,TURBOCHARGER	1
C3938156	GASKET,GEAR HOUSING	1	C3960404	TURBOCHARGER	1
C3960623	HOUSING,GEAR	1	PP43219ZZ	PERFORMANCE PARTS	1
BP 9710ZZ	LEVER，ROCKER	1	A3922409ZZ	INJECTOR	1
C3284377	ROD,PUSH	12	C3355015	INJECTOR	6
C3901221	SCREW,HEXAGON HEAD CAP	6	C3909356	SEAL,RECTANGULAR	6
C3920781	SCREW,HEX FLANGE HEAD CA	6	C3971964ZZ	CAMSHAFT	1
C3934920	SUPPORT,ROCKER LEVER	6	C3900227	SCREW,HEXGON HEAD CAP	2
BP 9711ZZ	FOLLOWER,CAM	1	C3927155	SUPPORT,CAMSHAFT THRUST	1
C3931623	TAPPET,VALVE	12	C3929028	GEAR,CAMSHAFT	1
CA 9104ZZ	PLUMBING,AIR CLEANER	1	C3970366	CAMSHAFT	1
C3978436	CLAMP,T BOLT	2	C4928969	KEY,PLAIN WOODRUFF	1
C4936465	HOSE,ELBOW	1	C3971966ZZ	PISTON,ENGINE	1
CM 9016ZZ	COVER, CAM FOLLOWER	1	C3904531	RING,COMPRESSION PISTON	6
C3284623	GASKET,PUSH ROD COVER	1	C3918315	RING,COMPRESSION PISTON	6
C3900630	SCREW,HEX FLANGE HEADCAP	4	C3920691	RING,RETAINING	6
C3918614	HOSE,PLAIN	1	C3920691	RING,RETAINING	6
C3990730ZZ	COVER,PUSH ROD	1	C3926631	PISTON,ENGINE	6
C3907586	BAFFLE,BREATHER	1	C3932520	RING.OIL PISTON	6
C3990737	COVER,PUSH ROD	1	C3934047	PIN,PISTON	6
C4928971	CLAMP,T BOLT	1	C3942581	ROD,ENGINE CONNECTING	6
C4994848	SEAL,GROMMET	4	C3900919	SCREW,CONNECTING ROD	2
CM 9701ZZ	COVER，CAM FOLLOWER	1	C4891178	BUSHING	1
C3900630	SCREW,HEX FLANGE HEADCAP	2	C3971970	BEARING,CONNECTING ROD	12
C4994848	SEAL,GROMMET	2	PP97298ZZ	MOUTING，CYLINDER HEAD	1
DA 9208ZZ	DAMPER,VIBRATION	1	C3283570	GASKET,CYLINDER HEAD	1
C3903857	SCREW,HEX FLANGE HEAD CA	4	PP98727ZZ	HEAD,CYLINDER	1
C3958258	DAMPER,VIBRATION	1	C3977600ZZ	HEAD,CYLINDER	1
C4932908	FLANGE,CRANKSHAFT	1	3900250	COLLET,VALVE	24
DF 9176ZZ	DRIVE,FRO GER TRA ACC	1	C3008465	PLUG,PIPE	2
C3008468	PLUG,PIPE	1	C3008468	PLUG,PIPE	5
C3900630	SCREW,HEX FLANGE HEADCAP	2	C3008469	PLUG,PIPE	1
C3900965	PLUG,EXPANSION	1	C3916691	SPRING,VALVE	6
C3901249	SCREW,HEX FLANGE HEAD	2	C3920779	SCREW,HEX FLANGE HEAD	6
C3906619	PLUG, PIPE	1	C3920780	SCREW,HEX FLANGE HEAD	14
C3906619	PLUG, PIPE	1	C3926700	SPRING,VALVE	6
C3929751	GASKET,ACC DRIVE COVER	1	C3957912	SEAL,VALVE STEM	12
C4942479	PLATE,COVER	1	C3957913	RETAINER,VALVE SPRING	12
EA 9099ZZ	ACCESSORIES,ELECTRICAL	1	C3966452	HEAD,CYLINDER	1
C3901249	SCREW,HEX FLANGE HEAD	1	C3812092	PLUG,PANSION	5
C4932506	WIRE,GROUND	1	C4994143	VALVE,EXHAUST	6
EC 9052ZZ	THERMOSTAT	1	C4995554	VALVE,INTAKE	6
C4930315	THERMOSTAT	1	RE 9055ZZ	SUPPORT,REAR ENGINE	1
EE 9314ZZ	ALTERNATOR	1	C3335006	SCREW,HEXAGON HEAD CAP	8

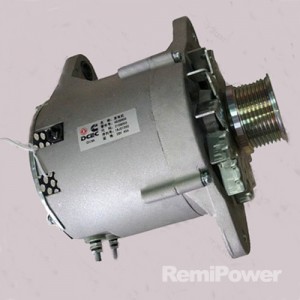

C4938600	ALTERNATOR	1	C3967119	WASHER,SPRING	8
EH97541ZZ	MOUNTING,ALTERNATOR	1	C3976617	SUPPORT,REAR ENGINE	2
C3900631	SCREW,HEX FLANGE HEAD	3	SB 9104ZZ	ACCESSORIES,ELE STARTING	1
C3900631	SCREW,HEX FLANGE HEAD	1	C3967109	WASHER,PLAIN	4
C3901249	SCREW,HEX FLANGE HEAD	1	C3967110	WASHER,SPRING	4
C3903105	SCREW,HEX FRANGE HEAD CA	1	C4988354	RELAY	2
C3903210	NUT,HEXAGON FLANGE	1	C4988412	BRACKET,RELAY	1
C3910923	SUPPORT,ALTERNATOR	1	C4991519	NUT,REGULAR HEXAGON	4
C3910924	SUPPORT,ALTERNATOR	1	C4991520	SCREW,HEXAGON HEAD CAP	4
EH97545ZZ	DRIVE,ALTERNATOR	1	SM 9702ZZ	MOUNTING，STARTING	1
C3285958	BRACKET,BELT TENSIONER	1	C3968470	SCREW,TWELVE POINT	3
C3900631	SCREW,HEX FLANGE HEAD	1	SP 9110ZZ	SPACER,FAN PILOT	1
C3911568	BELT，V RIBBED	1	C3925344	SCREW,HEX FLANGE HEAD CA	4
C3925186	SCREW，FLAT HEAD CAP	1	C4903110	SCREW,HEX FLANGE HEAD CA	4
C3937553	TENSIONER,BELT	1	C4931791	FLANGE,CONNECTION	1
C3967107	WASHER,PLAIN	1	C4988581	NUT,HEXAGON FLANGE	4
C3979347	SCREW,HEXAGON HEAD CAP	1	ss 9001zz	PAINT	1
EM 9311ZZ	SUPPORT,FRONT ENGINE	1	C3991084	NAMEPLATE	1
C3335006	SCREW,HEXAGON HEAD CAP	6	SS 9530ZZ	KIT,ENGINE INSTALLATION	1
C3967119	WASHER,SPRING	6	C3903380	SEAL,BANJO CONNECTOR	3
C4928962	WASHER,PLAIN	6	C3906694	SEAL，RECTANGLE	1
C4988361	SUPPORT,FRONT ENGINE	1	C3906695	SEAL，RECTANGLE	1
C4988362	SUPPORT,FRONT ENGINE	1	C3910824	SEAL,O RING	3
EO 9106ZZ	DEVICE,SIGNAL GENERATING	1	C3920773	WASHER,SEALING	1
C3967250	SENSOR,TEMPERATURE	1	C3930906	Gasket,Valve cover	3
EO 9107ZZ	SENSOR,OIL PRESSURE	1	C3936876	SEAL，RECTANGULAR RING	1
C3967251	SENSOR,OIL PRESSURE	1	C3937706	GASKET,OIL DRAIN	1
EO 9156ZZ	SENSOR,SPEED	1	C3939258	GASKET，COVER PLATE	1
C3971994	SENSOR,SPEED	2	C3942915	GASKET,FILTER HEAD	1
FA 9514ZZ	DRIVE,FAN	1	C3963983	WASHER,SEALING	2
C3900678	SCREW，HEX FLANGE HEAD	4	C4932124	GASKET,OIL COOLER CORE	1
C3914458	FULLEY,FAN	1	ST 9427ZZ	MOTOR,STARTING	1
C4932907	SUPPORT,FAN	1	C4935789	MOTOR,STARTING	1
FE 9081ZZ	PLUMBING,AIR FUEL CONTRO	1	TB 9044-01ZZ	LOCATION,TURBOCHARGER	1
C3906619	PLUG, PIPE	1	C3929881	GASKET,EXHAUST MANIFOLD	6
FF 9040-02ZZ	FILTER,FUEL	1	C3930249	SCREW,HEX FRANGE HEAD CA	12
C3906694	SEAL，RECTANGLE	1	C3938152	GASKET,INT MANIFOLD COVE	1
C3906695	SEAL，RECTANGLE	1	C3970066	MANIFOLD,EXHAUST	1
C3911446	SCREW,BANJO CONNECTOR	1	C4928946	SCREW,HEX FLANGE HEAD CA	12
C3925955	ADAPTER,FILTER HEAD	1	C4928973	CLAMP,T BOLT	2
C3930942	FILTER,FUEL	1	C4928974	CLAMP,T BOLT	2
C3930969	HEAD,FULE FILTER	1	C4991276	PIPE,AIR TRANSFER	1
C3931063	FILTER,FUEL	1	C4991284	HOSE,PLAIN	1
C3939570	SCREW,CAPTIVE WASHER	1	C4991285	HOSE,PLAIN	1
C3963983	WASHER,SEALING	2	TB91640ZZ	MANIFOLD,AIR INTAKE	1
C4928959	NUT,REGULAR HEXAGON	1	C3913915	COVER,INTAKE MANIFOLD	1
C4934663	HEAD,FUEL FILTER	1	TH 9037ZZ	HOUSING,THERMOSTAT	1
C4991525	SCREW,HEX FLANGE HEAD CA	2	C3281246	BRACKET,LIFTING	1
FF90106ZZ	PLUMBING,FUEL FILTER	1	C3285102	HOUSING,THERMOSTAT	1
C3960692	CLAMP,HOSE	1	C3900632	SCREW,HEX FLANGE HEAD	1
C3976608	TUBE,FUEL SUPPLY	1	C3923331	GASKET,THM HOUSING	1
FH 9634ZZ	HOUSING,FYYWHEEL	1	C3926972	SCREW,HEX FLANGE HEAD CA	2
C3008469	PLUG,PIPE	1	TL 9137ZZ	LEVER,THROTTLE	1
C3900225	SCREW,HEXAGON HEAD CAP	2	C3967107	WASHER,PLAIN	2
C3900627	SCREW,HEX FLANGE HEAD	6	C3967108	WASHER,SPRING	2
C3908095	PLATE,COVER	1	C4942951	BRACKET,THROTTLE CONTROL	1
C3910248	PLUG,O RING	1	C4991523	SCREW,HEXAGON HEAD CAP	2
C3910260	SEAL,O RING	1	TO90000ZZ	TOOL, SERVICE	1
C3910540	SCREW,HEX FRANGE HEAD	8	C4996942	TOOL,SERVICE	1
C3912473	SEAL,RECTANGULAR RING	1	C4996951	BAG,SERVICE TOOL	1
C3928989	CLIP	1	TP97314ZZ	PLUMBING,TURBOCHARGER	1
C3938159	GASKET,REAR COVER	1	C3900631	SCREW,HEX FLANGE HEAD	2
C4933323ZZ	COVER,REAR	1	C3937706	GASKET,OIL DRAIN	1
C3936904	COVER,REAR	1	C3974113	HOSE,FLEXIBLE	1
C4982415	SEAL,OIL	1	C3975061	TUBE,TUR OIL DRAIN	1
C4947579	HOUSING,FLYWHEEL	1	C3975113	CONNECTOR,MALE	2
FN 9184ZZ	FAN,ENGINE	1	VC 9023ZZ	COVER,VALVE	1
C4931786	FAN,ENGINE	1	C3901895	CAP,FILLER	1
FP90881ZZ	COUPLING,FUEL PUMP	1	C3907049	SCREW,HEX FLANGE HEAD CA	6
C3903112	SCREW,HEX FLANGE HEAD CA	1	C3928404	COVER,VALVE	5
C3960730	GEAR,FUEL PUMP	1	C3928405	CVER,VALVE	1
C3977315	STUD	4	C3930906	GASKET,VALVE COVER	6
C3977317	SUPPORT,FUEL PUMP	1	C3935449	ISOLATOR,NOISE	6
C3977318	BRACE，FUEL PUMP	1	C3936876	SEAL，RECTANGULAR RING	1
C3977319	CONNECTOR,MALE	1	WH 9129ZZ	PLUMBING,CABIN HEATER	1
C3977322	HOSE,FLEXIBLE	1	C3008468	PLUG,PIPE	1
C4988581	NUT,HEXAGON FLANGE	4	WI 9226ZZ	CONNECTION,WATER INLET	1
C4991526	SCREW,HEX FLANGE HEAD CA	2	C3008469	PLUG,PIPE	1
FP91584ZZ	PUMP,BASE FUEL	1	C3906697	SEAL,RECTANGULAR RING	1
C4945977	PUMP,FUEL INJECTION	1	C3973197	CONNECTION,WATER INLET	1
FS 9869ZZ	ACCESSORIES,FUEL SYSTEM	1	C4991495	SCREW,HEX FLANGE HEAD CA	3
C3976729	ELBOW,MALE ADAPTER	1	WI 9701ZZ	CONNECTION，WATER INLE	1
FS 9933ZZ	PUMP,FUEL TRANSFER	1	C3008468	PLUG,PIPE	2
C3900631	SCREW,HEX FLANGE HEAD	2	WP 9617ZZ	PUMP,WATER	1
C3914284	SPACER,MOUNTING	1	C3900227	SCREW,HEXGON HEAD CAP	2
C3916361	SCREW,BANJO CONNECTOR	1	C3906698	SEAL,RECTANGULAR RING	1
C3939258	GASKET，COVER PLATE	2	C4935793	PUMP,WATER	1
C3963983	WASHER,SEALING	2	XS 9469ZZ	CONNECTION,EXHAUST OUTLE	1
C4937767	PUMP,FUEL TRANSFER	1	C3093957	SCREW,HEX FLANGE HEAD CA	2
C4940671	TUBE FUEL SUPPLY	1	C3900632	SCREW,HEX FLANGE HEAD	2
FT 9241ZZ	PLUMBING,FUEL	1	C3903990	SCREW,HEX FLANGE HEAD	2
C3903380	SEAL,BANJO CONNECTOR	6	C3971092	BRACE,TUBE	1
C3905307	SCREW,BANJO CONNECTOR	6	C3971093	ELBOW,MALE ADAPTER	1
C3918188	WASHER，SEALING	2	C4928803	CLAMP,SPRING HOSE	2
C3924726	VALVE，CHECK	1	C4928804	GASKET,EXHOUT CONNECTION	1
C3960650	TUBE,INJECTOR FUEL SUPPL	1	C4928805	GASKET,EXHOUT CONNECTION	2
C3960651	TUBE,INJECTOR FUEL SUPPL	1	C4991528	NUT,HEXAGON FLANGE	2
C3967129	CONNECTOR，BANJO	1	C3911568	BELT，V RIBBED	1
C4928975	CLIP	1	C3930942	FILTER,FUEL	1
C4931027	MANIFOLD,FUEL	1	C3931063	FILTER,FUEL	1
C4931179	BRACE,TUBE	1	C3937743	CARTRIDGE,LUB OIL FILTER	1
C4991513	SCREW,HEXAGON HEAD CAP	1

PREV Caterpillar Spare Parts NEXT Cummins 6LTAA8.9 Genuine Spare Parts

Cummins 6BTA5.9 Genuine Spare Parts

Maybe you like also

CATEGORYS

Enquiry Form ( we will get back you as soon as possible )

PRODUCTS

OUR PROJECTS

THE PARTNERS

HEAD OFFICE
